Front Differential Carrier Bearing Removal (AWD) Automatic Transmission Unit

am

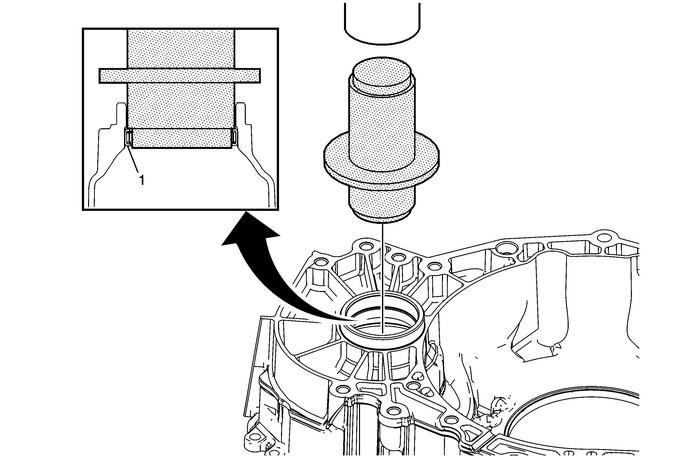

Front Differential Carrier Bearing Removal

Callout

Component Name

1

Front Differential Carrier Bearing

Special ToolsDT-49831Differential Bearing Remover/Installer (2 PinionBlue)DT-50087Differential Bearing Remover/Installer (4 PinionRed)
