Chevrolet Equinox Service Manual: Front Brake Shield Replacement Disc Brakes
Removal Procedure
Warning:Refer toBrake Dust Warning.
Raise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the tire and wheel assembly. Refer toTire and Wheel Removal and Installation.Remove the front wheel drive shaft nut. Refer toFront Wheel Drive Shaft Replacement.Remove the front brake rotor. Refer toFront Brake Rotor Replacement.Remove the front wheel bearing and hub assembly. Refer toFront Wheel Bearing and Hub Replacement.

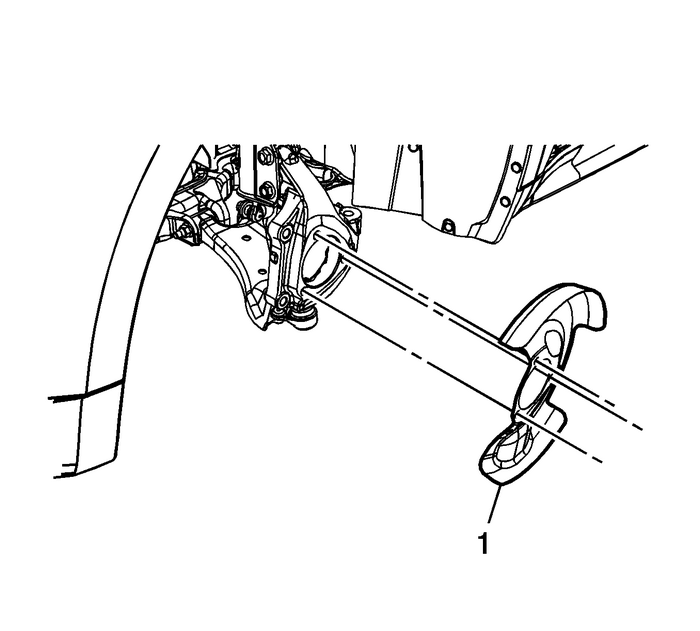

Remove the front brake shield-(1).Installation Procedure
Install the front brake shield-(1).Install the front wheel bearing and hub assembly. Refer toFront Wheel Bearing and Hub Replacement.Install the front wheel drive shaft nut. Refer toFront Wheel Drive Shaft Replacement.Install the front brake rotor. Refer toFront Brake Rotor Replacement.Install the tire and wheel assembly. Refer toTire and Wheel Removal and Installation.
