Chevrolet Equinox Owners Manual: Fog Lamps

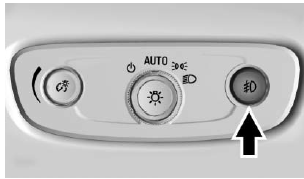

The fog lamps button is on the instrument panel to left of the steering wheel.
To turn on the fog lamps, the ignition and the headlamps or parking lamps must be on.
: If equipped, press to turn on or
off. An indicator light on the
instrument cluster comes on when
the fog lamps are on.
Some localities have laws that require the headlamps to be on along with the fog lamps.
Turn and Lane-Change Signals
Move the lever all the way up or
down to signal a turn.
An arrow on the instrument cluster
will flash in the direction of the turn
or lane change.
Raise or lower the lever until the
arro ...
