Fluid Trough Removal Automatic Transmission Unit

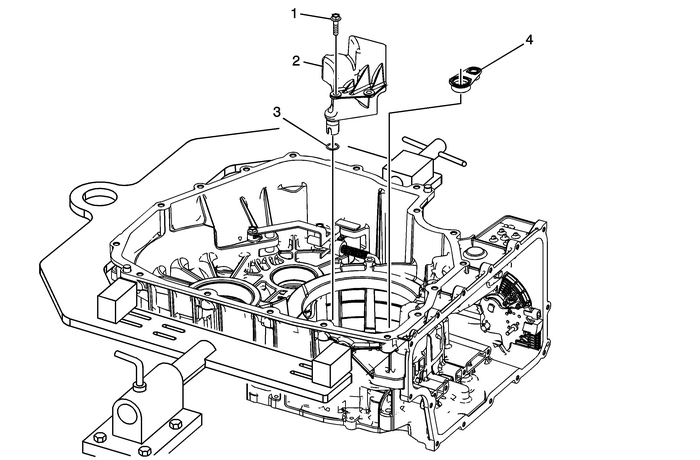

Fluid Trough Removal

Callout

Component Name

1

A/Trans Fluid Trough Bolt-M6-x-25 (Qty: 1)

2

A/Trans Fluid Trough

3

A/Trans Fluid Trough-(O-Ring) Seal

4

A/Trans Fluid Pump Outlet Seal Assembly

Note:The seal assembly is not reusable.
