Chevrolet Equinox Service Manual: Fluid Pump Selective Measurement Automatic Transmission Unit Transmission Oil Pump

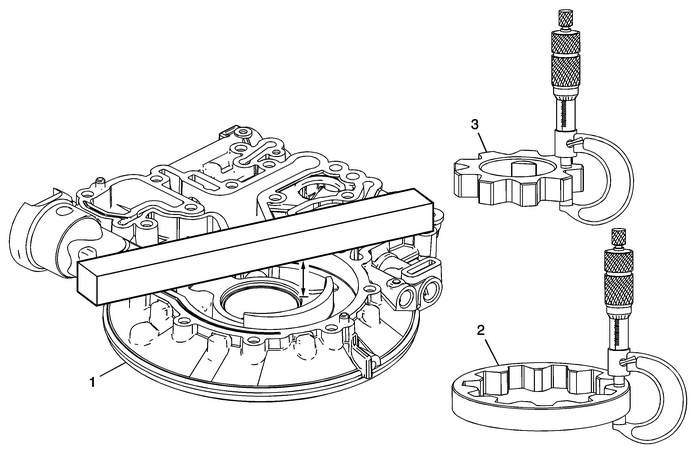

1 | A/Trans Fluid Pump Body Note:Measure the distance from the bottom of the gauge bar to the bottom of the pump rotorcavity. Refer toFluid Pump Selective Specifications. Special Tool GE-34673 Flat Gauge Bar or equivalent |
2 | A/Trans Fluid Pump Driven Gear Note:Refer toFluid Pump Selective Specificationsto select the correct gear. |
3 | A/Trans Fluid Pump Drive Gear Note:Refer toFluid Pump Selective Specificationsto select the correct gear. |
Fluid Pump Cover - Fluid Pump Body Side Automatic Transmission Unit
Fluid Pump Cover-–-FluidPump Body Side(1)Suction(2)Line(4)Converter Feed(5)TCC Release(6)TCC Apply(7)Cooler Feed(9)Regulated Apply(12)PCS Line(34)PCS TCC ...
Fluid Trough Installation Automatic Transmission Unit
Fluid Trough InstallationCalloutComponent Name1A/Trans Fluid Pump Outlet Seal Assembly2A/Trans Fluid Trough (O-ring) Seal3A/Trans Fluid Trough4A/Trans Fluid TroughBolt-M6-x-25 (Qty: 1)Caution:Refer to ...
