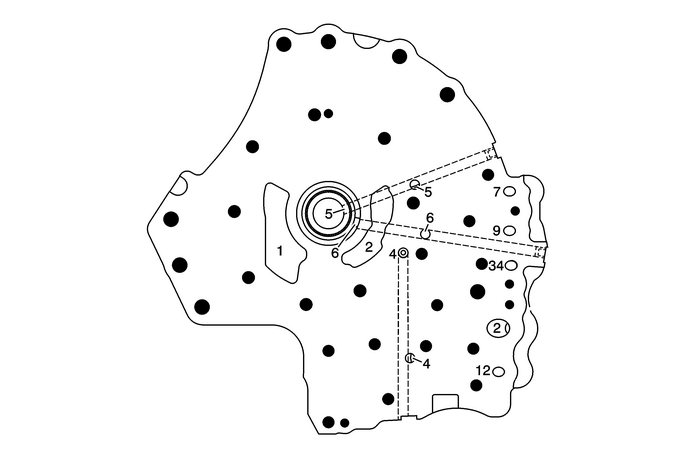

Fluid Pump Cover-–-FluidPump Body Side

Fluid Pump Cover - Fluid Pump Body Side Automatic Transmission Unit

(1)Suction
(2)Line
(4)Converter Feed
(5)TCC Release
(6)TCC Apply
(7)Cooler Feed
(9)Regulated Apply
(12)PCS Line
(34)PCS TCC
Fluid Pump Body - Fluid Pump Cover Side Automatic Transmission Unit
Fluid Pump Body-–-Fluid PumpCover Side(1)Suction(2)Line(4)Converter Feed(5)TCC Release(6)TCC Apply(7)Cooler Feed(9)Regulated Apply(12)PCS Line(34)PCS TCC(36)Exhaust(37)Void(38)Seal Drainback ...

Fluid Pump Selective Measurement Automatic Transmission Unit Transmission Oil Pump
Fluid Pump Selective MeasurementCalloutComponent Name1A/Trans Fluid Pump BodyNote:Measure the distance from the bottom of the gauge bar to the bottom of the pump rotorcavity. Refer toFluid Pump Select ...
