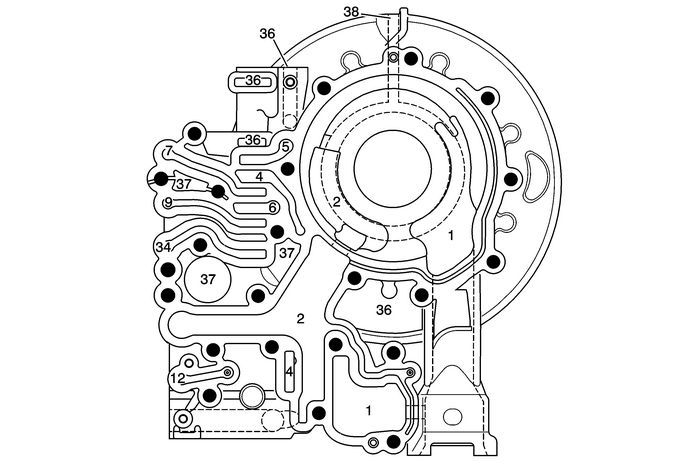

Fluid Pump Body-–-Fluid PumpCover Side
| (1) | Suction |
| (2) | Line |
| (4) | Converter Feed |
| (5) | TCC Release |
| (6) | TCC Apply |
| (7) | Cooler Feed |
| (9) | Regulated Apply |
| (12) | PCS Line |
| (34) | PCS TCC |
| (36) | Exhaust |
| (37) | Void |
| (38) | Seal Drainback |
Fluid Capacity Specifications (6T40/45/50) Automatic Transmission Unit
Fluid Capacity SpecificationsApplicationSpecificationMetricEnglishValve Body CoverRemoval-–-ApproximateCapacity5.0–7.0-liters5.3–7.4-quartsFluid Change-–-DrainPlug-–-Approximate Capacity4.0â ...
Fluid Pump Cover - Fluid Pump Body Side Automatic Transmission Unit
Fluid Pump Cover-–-FluidPump Body Side(1)Suction(2)Line(4)Converter Feed(5)TCC Release(6)TCC Apply(7)Cooler Feed(9)Regulated Apply(12)PCS Line(34)PCS TCC ...
