Flexible Fuel Sensor Replacement Engine Control

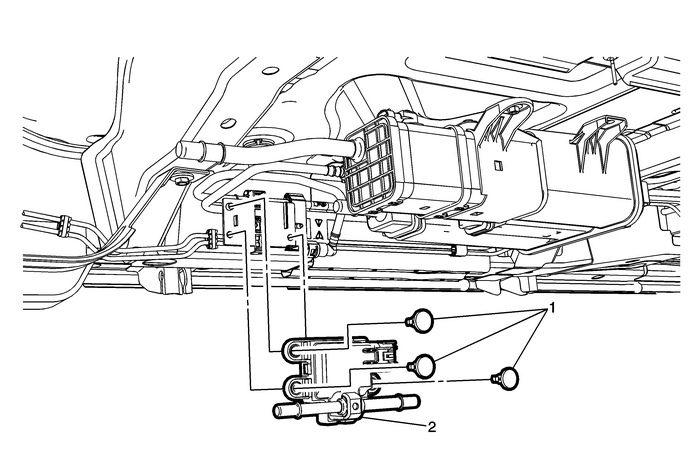

Flexible Fuel Sensor Replacement

Callout

Component Name

Preliminary ProcedureRelieve the fuel system pressure. Refer toFuel Pressure ReliefRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.

1

Plastic Retainers

Procedure

Squeeze the plastic retainers from the back in order to release.

2

Flex Fuel Sensor

ProcedureDisconnect the fuel line connectors. Refer toPlastic Collar Quick Connect Fitting Service.Release the plastic retaining tab.Disconnect the electrical connector.
