Chevrolet Equinox Service Manual: Fill Plug Replacement Automatic Transmission Unit

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Fill Plug Replacement Automatic Transmission Unit

Removal ProcedureRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.

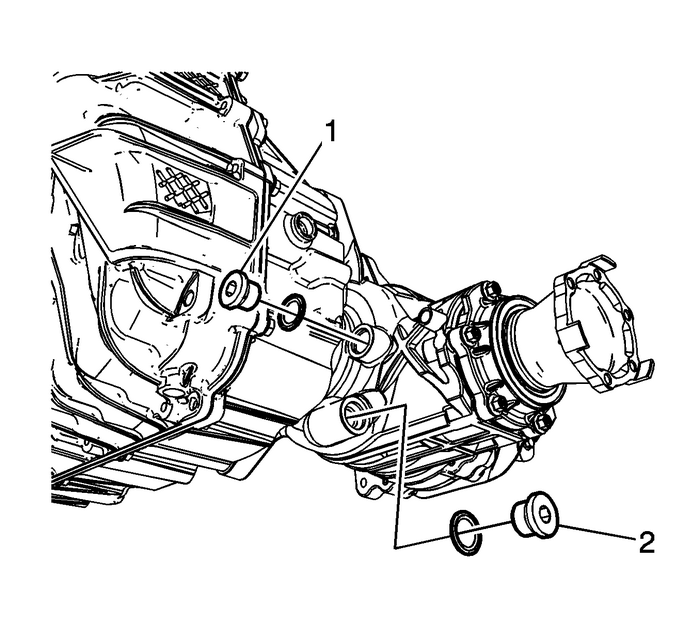

Fill Plug Replacement Automatic Transmission Unit

Remove the fill plug-(1).Installation Procedure

Fill Plug Replacement Automatic Transmission Unit

Clean the fill plug and apply adhesive GM-P/N-12345493 (Canadian-P/N-10953488) tothe threads.

Caution:Refer toFastener Caution.

Install the fill plug-(1) and tighten to 39-Y (29-lb-ft).Lower the vehicle.

Drain Plug Replacement Automatic Transmission Unit

Removal ProcedureRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the drain plug-(2).Remove the fill plug-(1).Installation ProcedureClean and inspect the drain plug and ca ...

Transmission Fluid Drain and Fill Automatic Transmission Unit

Removal ProcedureRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the fluid drain plug-(1).Drain transmission fluid into a suitable container.Caution:Refer toComponent Fas ...
