Chevrolet Equinox Owners Manual: Exterior Lighting

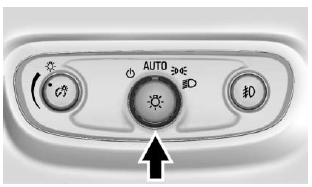

The exterior lamp control is on the instrument panel to the left of the steering column.
There are four positions.
: Turns the exterior lamps off and
deactivates the AUTO mode. Turn
again to reactivate the
AUTO mode.
In Canada, the headlamps will automatically reactivate when the vehicle is shifted out of P (Park).
AUTO : Turns the exterior lamps on and off automatically depending on outside lighting.
: Turns on the parking lamps
including all lamps, except the
headlamps.
: Turns on the headlamps
together with the parking lamps and
instrument panel lights.
See:
- Exterior Lamp Controls
- Daytime Running Lamps (DRL)
- Fog Lamps
Reading Lamps
There are reading lamps on the
overhead console and over the rear
passenger doors. These lamps
come on when any door is opened.
Front Reading Lamps
The front reading lamps are in the
overhea ...
Windshield Wiper/Washer
The windshield wiper/washer lever
is on the side of the steering
column. With the ignition on or in
ACC/ACCESSORY, move the
windshield wiper lever to select the
wiper speed.
HI : Use for f ...
