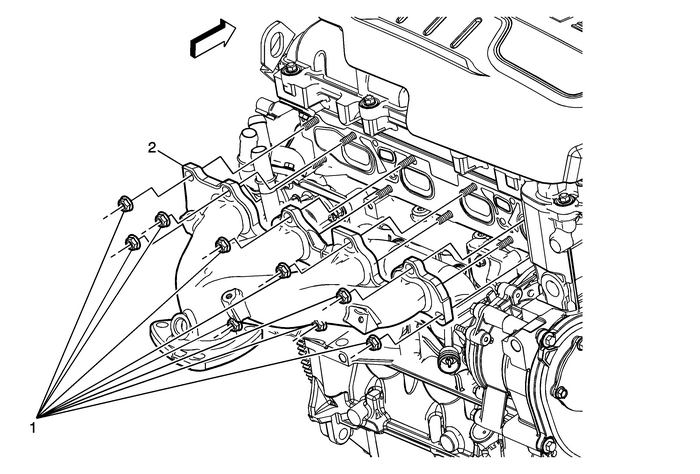

Exhaust Manifold Replacement

Callout

Component Name

Preliminary ProceduresRemove the exhaust manifold heat shield. Refer toExhaust Manifold Heat Shield Replacement.Remove the exhaust manifold heated oxygen sensor. Refer toHeated Oxygen Sensor Replacement - Sensor 1.Remove the intake manifold bracket.Remove the 3 exhaust manifold fasteners. Refer toCatalytic Converter Replacement.

Exhaust Manifold Nut (Qty:-10)

Warning:Refer toHot Exhaust System Warning.

Caution:Refer toFastener Caution.

Tighten

14-Y (10-lb-ft)

Exhaust Manifold

ProcedureRemove and discard the exhaust manifold gasket.Clean any exhaust manifold gasket debris from the cylinder head and exhaust manifold.Install new exhaust manifold gasket.Tighten the exhaust manifold nuts working from the center out.
