Chevrolet Equinox Service Manual: Evaporative Emission Canister Vent Solenoid Valve Replacement Emissions Evap Evap Canister Purge
Removal Procedure

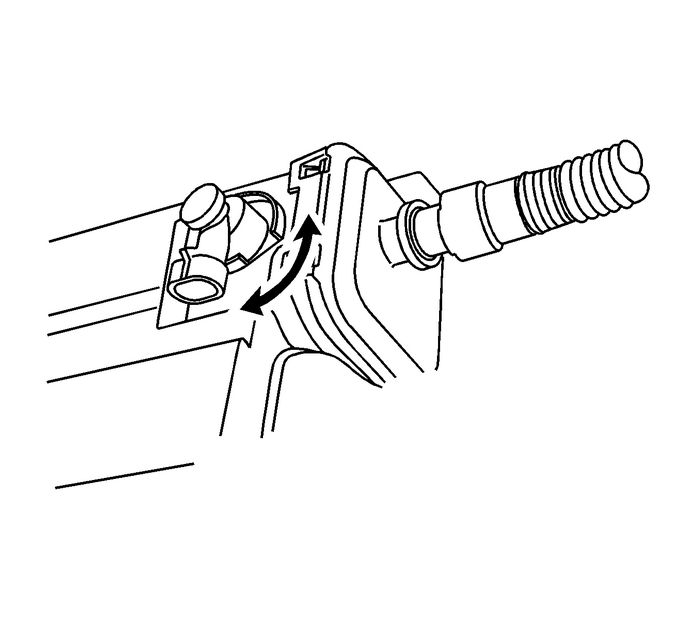

Remove the evaporative emission (EVAP) canister. Refer toEvaporative Emission Canister Replacement.Rotate the EVAP canister vent valve clockwise to release from the locked position.

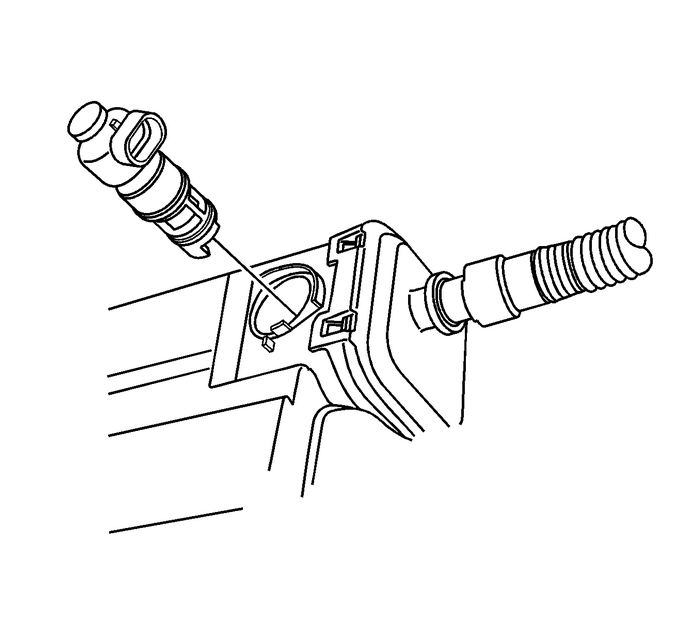

Remove the vent valve from the EVAP canister.Installation Procedure
Insert the EVAP canister vent solenoid valve into the EVAP canister, with the valvealigned to the released position.
Rotate vent valve counterclockwise to secure into the locked position.Install the EVAP canister. Refer toEvaporative Emission Canister Replacement.
