Evaporative Emission Canister Purge Solenoid Valve Replacement Emissions Evap Evap Canister Purge

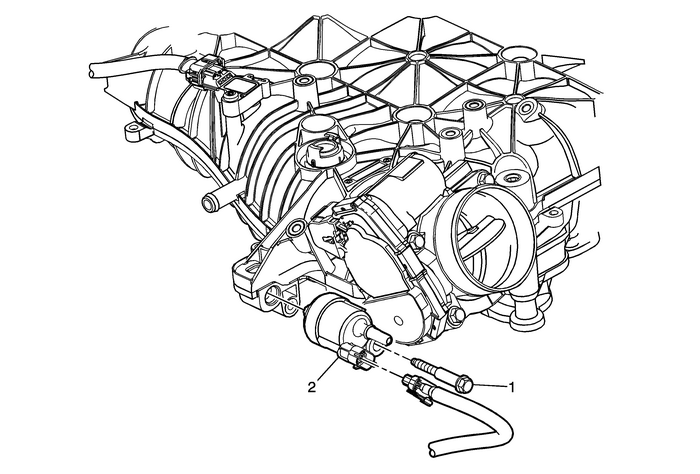

Evaporative Emission Canister Purge Solenoid Valve Replacement

Callout

Component Name

Preliminary Procedure

Remove the intake manifold cover. Refer toIntake Manifold Cover Replacement.

1

Bolt

Caution:Refer toFastener Caution.

Tighten

10-Y (89-lb-in)

2

Evaporative Emission Canister Purge Solenoid Valve

ProcedureDisconnect the EVAP canister purge solenoid harness connector.Install a NEW O-ring.
