Engine Oil Pressure Switch Replacement

Callout

Component Name

Preliminary Procedure

Remove the starter. Refer toStarter Replacement.

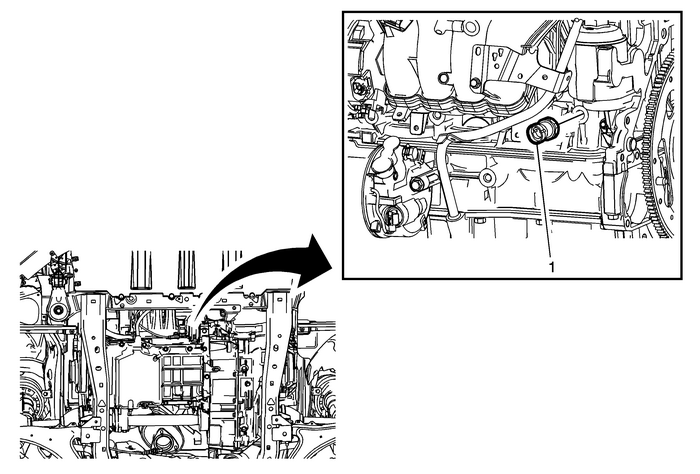

Oil Pressure Switch

Caution:Refer toFastener Caution.

Procedure

Disconnect the engine wiring harness electrical connector asnecessary.

Tighten

26-Y(19-lb-ft)
