Engine Mount Replacement - Right Side Engine Block Engine Mounts

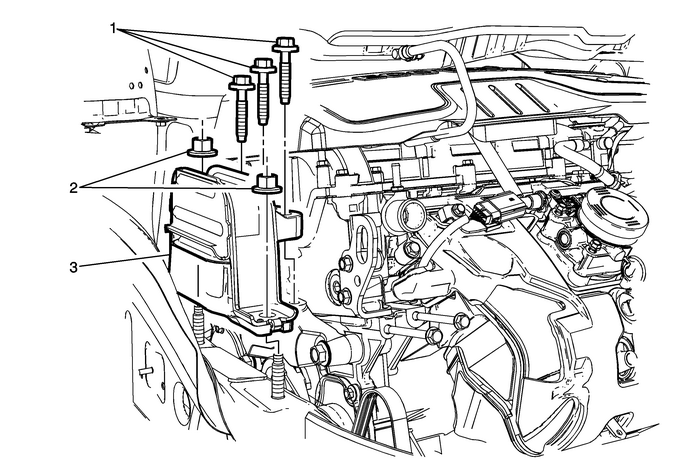

Engine Mount Replacement - Right Side

Callout

Component Name

Preliminary ProceduresRemove the air cleaner assembly. Refer toAir Cleaner Assembly Replacement.Install engine support fixture. Refer toEngine Support Fixture.

1

Engine Mount Fastener (Qty:-3)

Caution:Refer toFastener Caution.

Tighten

58-Y (43-lb-ft)

2

Engine Mount Fastener (Qty:-2)

Tighten

94-Y (69-lb-ft)

3

Engine Mount

Procedure

Transfer components as necessary.
