Engine Mount Bracket Replacement Engine Block Engine Mounts

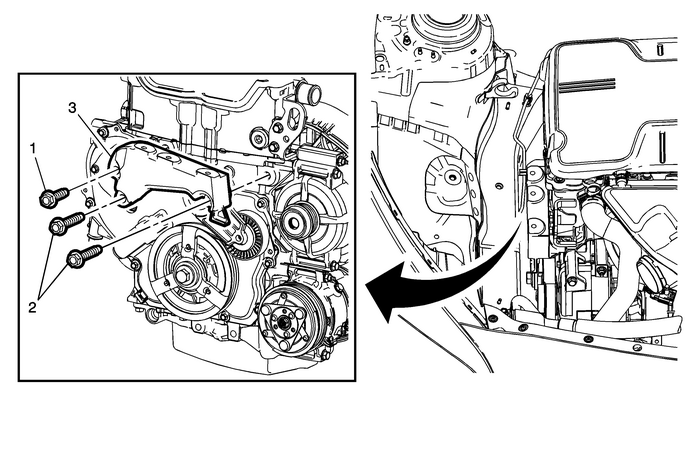

Engine Mount Bracket Replacement

Callout

Component Name

Preliminary Procedure Remove the engine mount. Refer toEngine Mount Replacement - Right Side.
1	Engine Mount Bracket Fastener Caution:Refer toFastener Caution. Tighten 100-Y(74-lb-ft)
2	Engine Mount Bracket Fastener (Qty,2) Tighten 100-Y(74-lb-ft)
3	Engine Mount Bracket
