Engine Identification (LAF, LEA, or LUK)

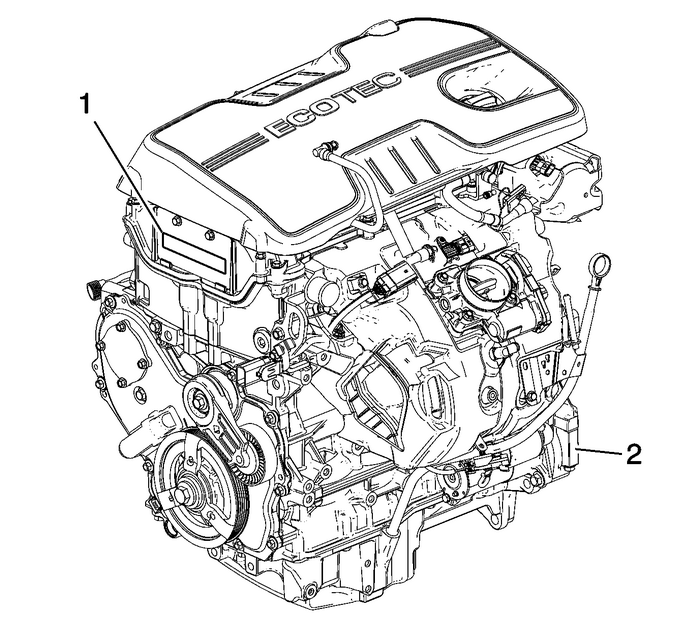

Identification can be made through the use of the BroadcastCode label on the engine-(1) and the use of the partialVIN etched in one of two places - the primary location is on thestarter motor flange-(2). The secondary location is theoil filter bowl.

Engine Identification (LAF, LEA, or LUK)

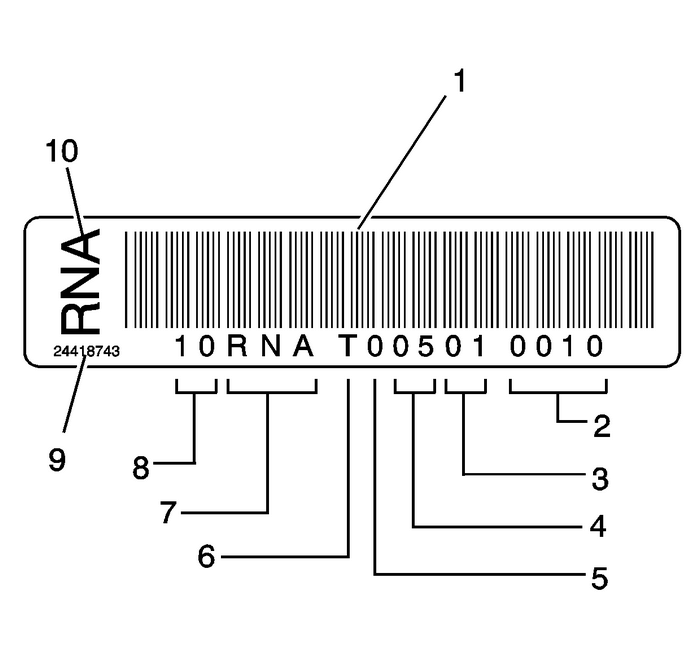

1ornat005010010

Barcode-(1)Sequence Number-(2)Day-(3)Month-(4)Year-(5)Engine Assembly Plant-(6)Broadcast Code-(7)Part Designation-(8)Engine Assembly Number-(9)Broadcast Code-(10)

The partial VIN identifies the specific vehicle by sequencenumber.
