Engine Front Cover Disassemble Engine Block Cylinder Block Cyl Block Front Cover

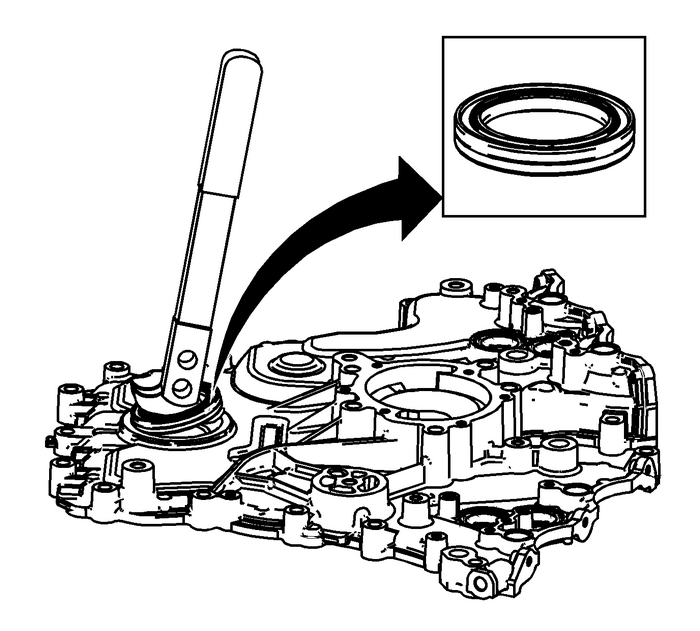

Remove the crankshaft front oil seal from the engine frontcover using theEN 45000remover.

Engine Front Cover Disassemble Engine Block Cylinder Block Cyl Block Front Cover

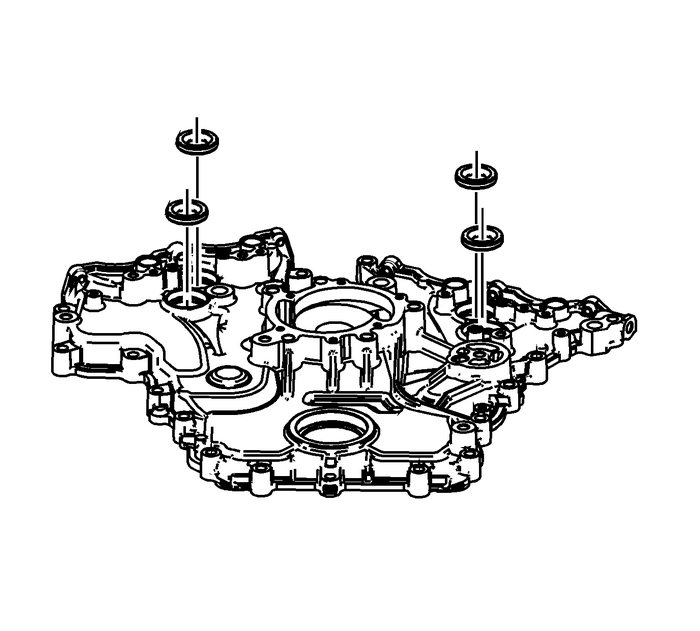

Remove the camshaft position actuator valve oil seals fromthe engine front cover.

Engine Front Cover Disassemble Engine Block Cylinder Block Cyl Block Front Cover

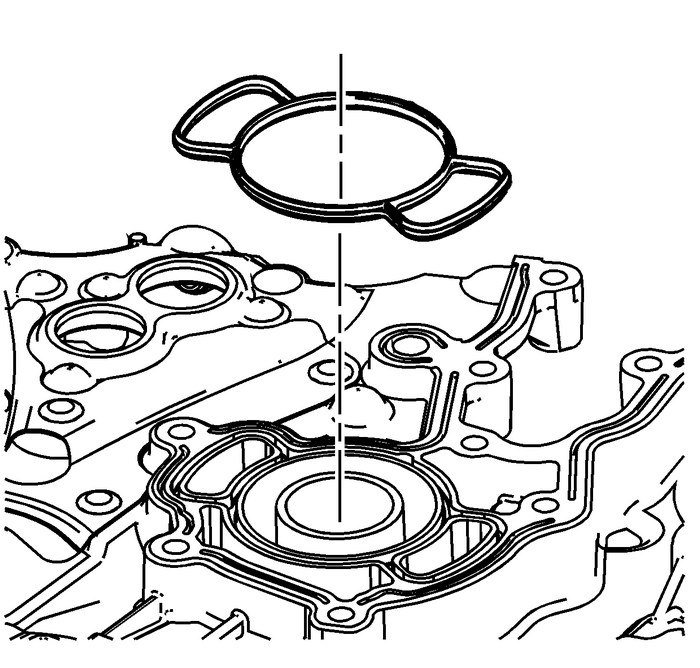

Remove the water pump seal from the engine frontcover.Discard the water pump seal.

Draining Fluids and Oil Filter Removal Engine Lubrication Oil Filter

Special ToolsEN-44887Oil Filter WrenchFor equivalent regional tools, refer toSpecial Tools.UseEN-44887wrenchto remove the oil filter cap-(1). Remove theoil pan drain plug and allow the oil to drain ou ...

Camshaft Timing Chain, Sprocket, and Tensioner Installation (LAF, LEA, or LUK) Valvetrain Valvetrain Timing

Special ToolsEN-45027 Tensioner ToolEN 45059 Angle MeterEN-48953 Camshaft Actuator Locking ToolFor equivalent regional tools, refer toSpecial Tools.Note:The engine is timed top-dead center exhaust str ...
