Engine Front Cover and Oil Pump Removal Engine Block Cylinder Block Cyl Block Front Cover

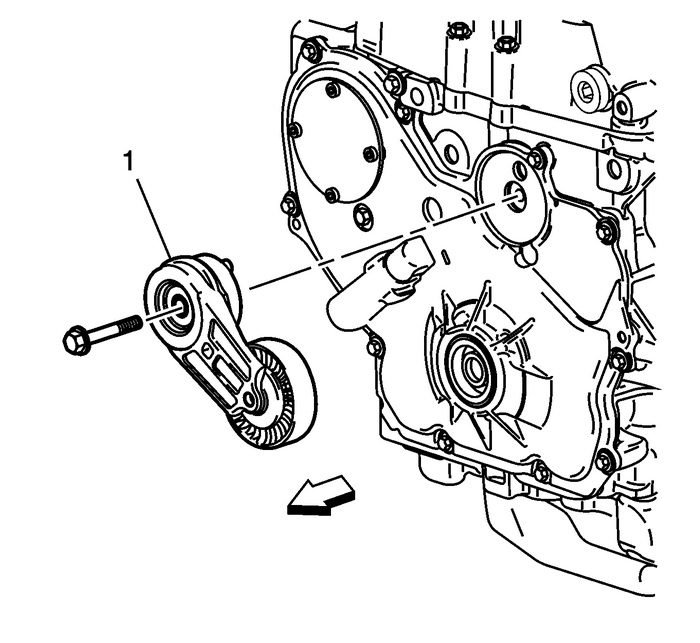

Remove the accessory drive belt tensioner bolt.Remove the accessory drive belttensioner-(1).

Engine Front Cover and Oil Pump Removal Engine Block Cylinder Block Cyl Block Front Cover

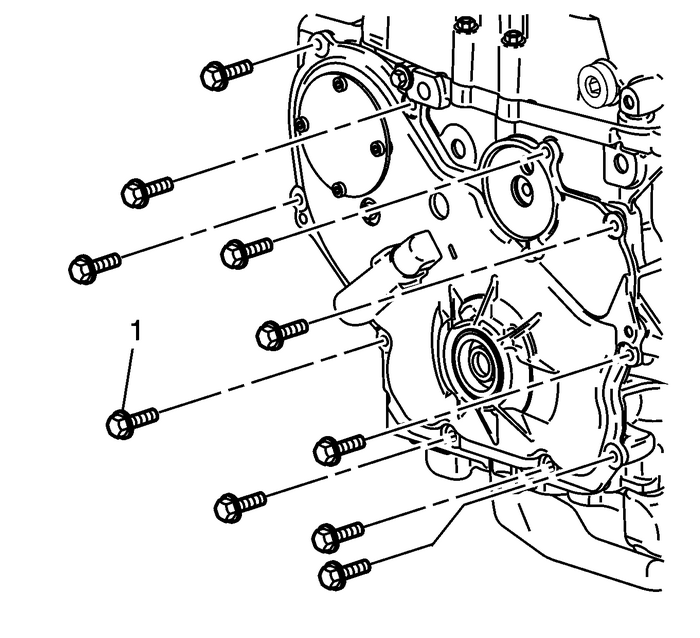

Remove the engine front cover bolts-(1).

Engine Front Cover and Oil Pump Removal Engine Block Cylinder Block Cyl Block Front Cover

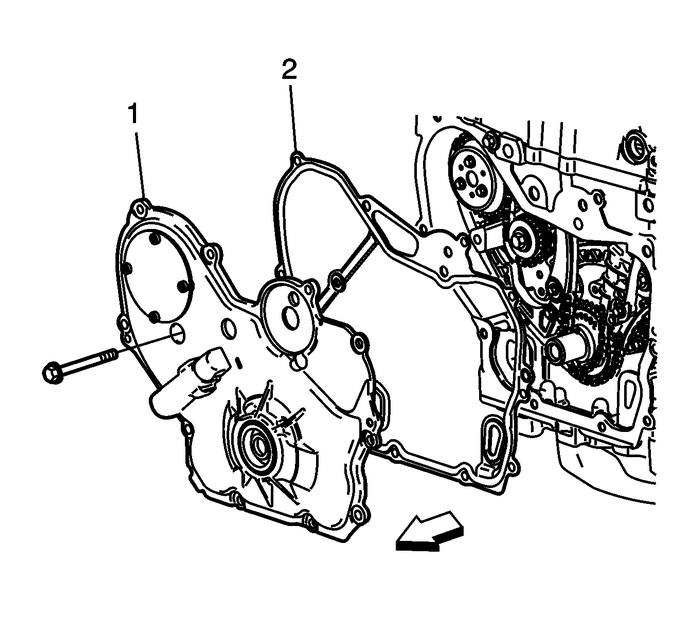

Remove the long water pump bolt.Remove the engine front cover-(1) andgaskets-(2).Remove the crankshaft front cover oil seal with anappropriate tool.
