Chevrolet Equinox Service Manual: Engine Flywheel Installation Flywheel/Flexplate

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Engine Flywheel Installation Flywheel/Flexplate

Special ToolsEN-38122-ACrankshaft Balancer HolderEN-43653Flywheel Holding ToolEN-45059Angle Meter

For equivalent regional tools, refer toSpecial Tools.

Engine Flywheel Installation Flywheel/Flexplate

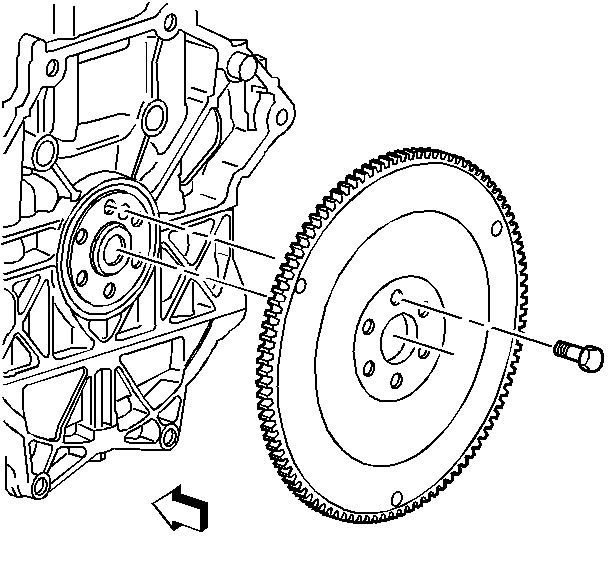

Install the flywheel.Install NEW bolts.

Caution:Refer toFastener Caution.

Note:EN-43653flywheel holding toolmay be used instead ofEN-38122-Aholderin order to prevent crankshaft rotation.

Holding the crankshaft balancer withEN-38122-Aholder, tighten the bolts evenly. Tighten the bolts to53-Y(39-lb-ft), plus25-degrees using theEN-45059meter
