Chevrolet Equinox Service Manual: Engine Flywheel Cleaning and Inspection Flywheel/Flexplate

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Engine Flywheel Cleaning and Inspection Flywheel/Flexplate

Cleaning ProcedureClean the flex plate in solvent.

Warning:Refer toSafety Glasses Warning.

Dry the flex plate with compressed air.Inspection Procedure

Engine Flywheel Cleaning and Inspection Flywheel/Flexplate

...__=

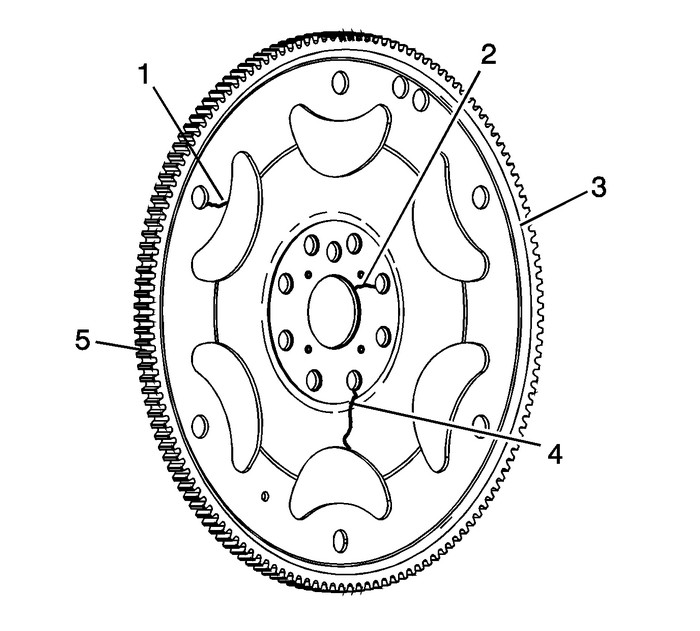

Inspect the flex plate for the following conditions:Stress cracks around the flex plate-to-torque converter mounting bolt hole locations-(1)and/or flex plate-to-crankshaft-(2, 4)

Note:Do not attempt to repair the welded areas that retain the ring gear to the flex plate.Install a NEW flex plate.

Cracks at welded areas that retain the ring gear onto the flex plate-(3)Damaged or missing ring gear teeth-(5)Replace the flex plate as necessary.
Channel Plate to Valve Body Spacer Plate Assembly - Channel Plate Side Automatic Transmission Unit
Channel Plate to Valve Body Spacer PlateAssembly-–-Channel PlateSide(2)Line(9)Regulated Apply(10)Exhaust Backfill(11)Actuator Feed Limit(12)PCS Line(13)PCS R1/456 Clutch(14)Shift Solenoid(15)R1/456 ...

Engine Flywheel Cleaning and Inspection Flywheel/Flexplate
Clean the flywheel in solvent.Warning:Refer toSafety Glasses Warning.Dry the flywheel with compressed air.Inspect the flywheel for the following:Damaged ring gear teethStress cracks around theflywheel ...
