Engine Coolant Thermostat Housing Installation Engine Cooling Thermostat

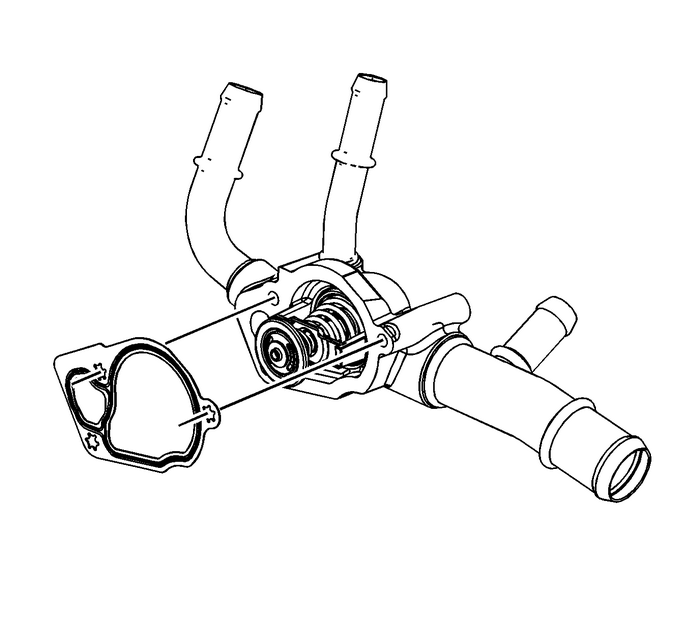

Install a NEW gasket onto the thermostat housing.

Engine Coolant Thermostat Housing Installation Engine Cooling Thermostat

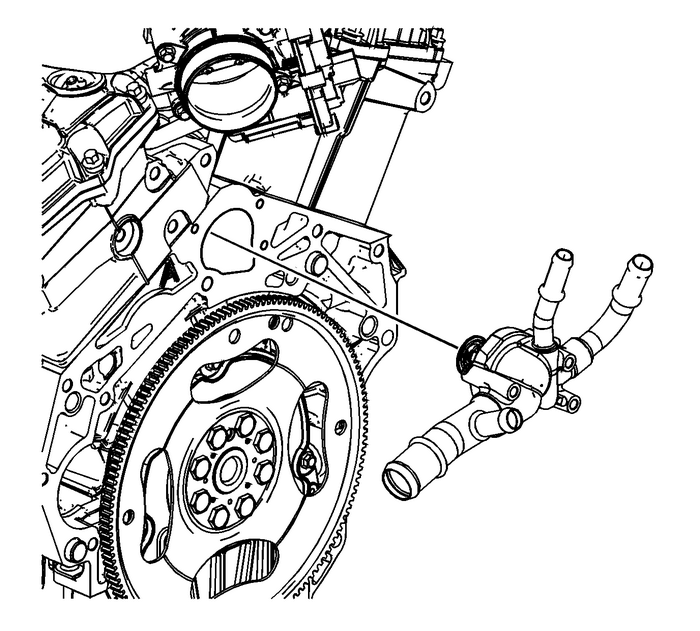

Install the thermostat housing.

Engine Coolant Thermostat Housing Installation Engine Cooling Thermostat

Caution:Refer toFastener Caution.

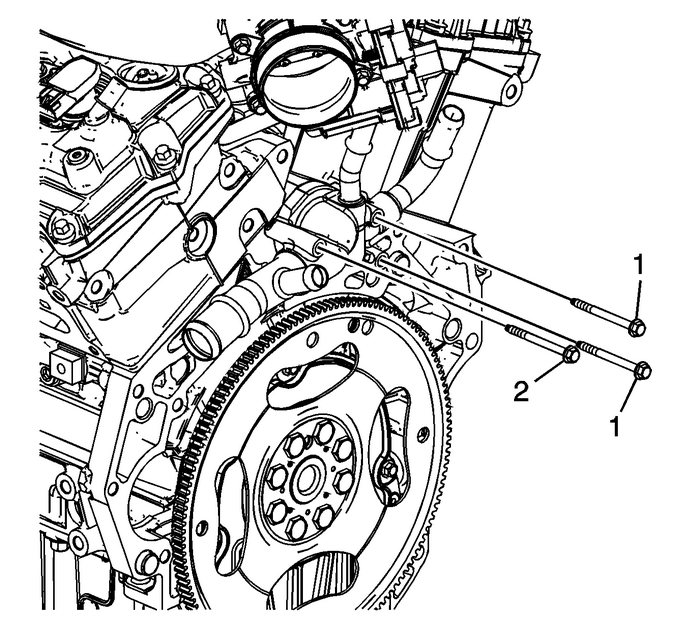

Install the thermostat housing bolts. Ensure to install theshort bolts-(1) and the long bolt-(2) in theproper position and tighten to10-Y(89-lb-in).
