Engine Coolant Fan Resistor Replacement Engine Cooling

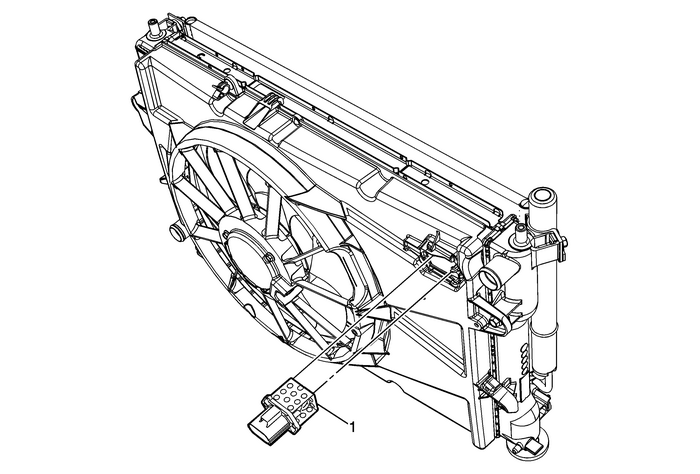

Engine Coolant Fan Resistor Replacement

Callout

Component Name

Preliminary Procedures

Disconnect the engine coolant fan resistor electricalconnector.

1

Engine Coolant Fan Resistor

Procedure

Depress tab on the engine coolant fan shroud to release theengine coolant fan resister from the engine coolant fanshroud.
