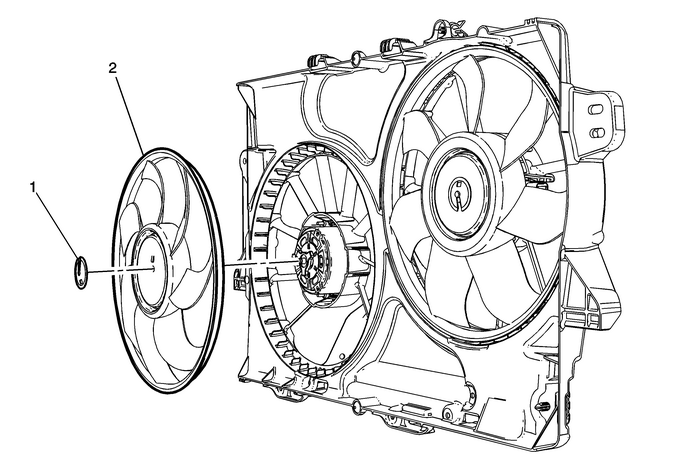

Engine Coolant Fan Replacement (LFX) Engine Cooling

Engine Coolant Fan Replacement

Callout

Component Name

Preliminary Procedures

Remove the cooling fan shroud. Refer toCooling Fan and Shroud Replacement.

1

Cooling Fan Retainer

2

Cooling Fan

Engine Coolant Air Bleed Pipe Replacement (LFX) Engine Cooling
Engine Coolant Air Bleed Pipe ReplacementCalloutComponent NamePreliminary ProcedureRemove the intake manifold cover. Refer toIntake Manifold Cover Replacement.1Engine Coolant Air Bleed Pipe Fastener ( ...

Engine Coolant Fan Replacement (LEA) Engine Cooling
Engine Coolant Fan ReplacementCalloutComponent NamePreliminary ProceduresRemove the engine coolant fan shroud. Refer toEngine Coolant Fan Shroud Replacement1Cooling Fan Retainer (Qty-3)Caution:Refer t ...
