Engine Coolant Air Bleed Pipe Replacement (LFX) Engine Cooling

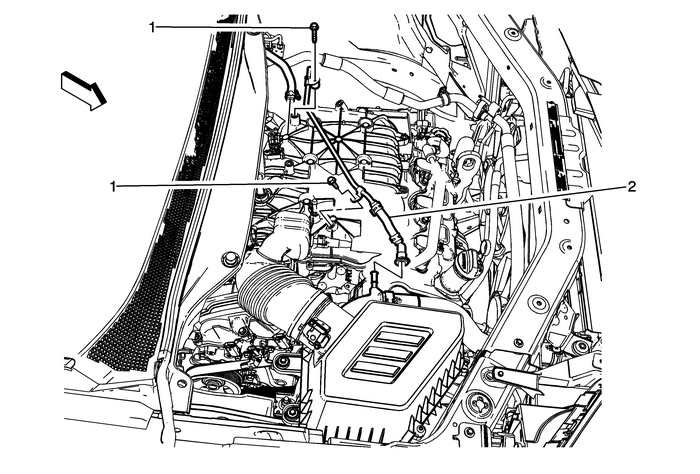

Engine Coolant Air Bleed Pipe Replacement

Callout

Component Name

Preliminary Procedure

Remove the intake manifold cover. Refer toIntake Manifold Cover Replacement.

1

Engine Coolant Air Bleed Pipe Fastener (Qty:-2)

Caution:Refer toFastener Caution.

Tighten:

9-Y (80-lb-in)

2

Engine Coolant Air Bleed Pipe
