Electronic Traction Control and Vehicle Stability Control Switch Replacement Dynamics Control ABS Control

Electronic Traction Control and Vehicle Stability Control Switch Replacement

Callout

Component Name

Preliminary Procedure

Remove the front floor console transmission shift openingtrim plate. Refer toFront Floor Console Transmission Shift Opening Trim Plate Replacement

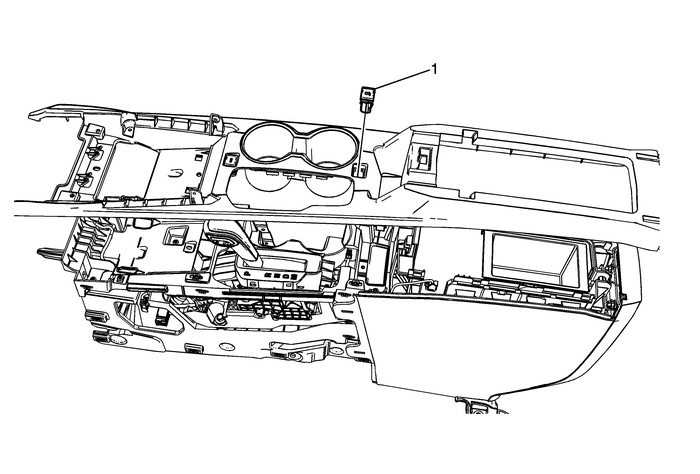

Electronic Traction Control and Vehicle Stability ControlSwitch

Insert your fingers or the appropriate tool into the seamaround the shifter assembly and push upward on the traction controlswitch from below to release the fastening tabs.Disconnect the electrical connector.
