Duct Air Temperature Sensor Replacement - Upper Engine Control Engine Control Sensors Intake Air Temp Sensor

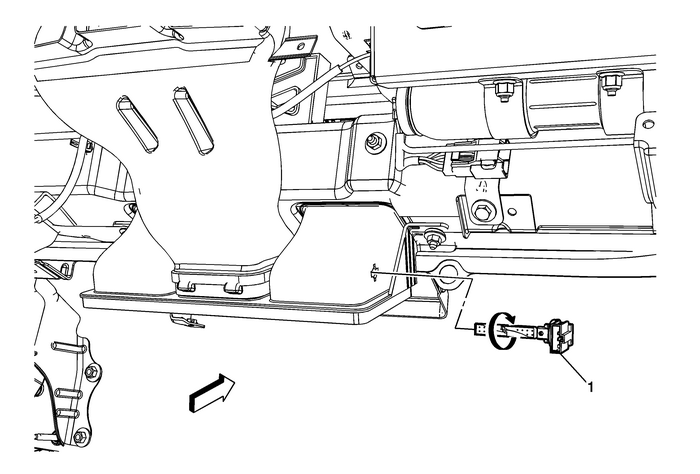

Duct Air Temperature Sensor Replacement - Upper

Callout

Component Name

Preliminary ProcedureRemove the I/P compartment door. Refer toInstrument Panel Compartment Door Replacement.Disconnect the electrical connections.

1

Air Temperature Sensor– Upper

Procedure

Rotate sensor¼ turn to remove.
