Duct Air Temperature Sensor Replacement - Lower Engine Control Engine Control Sensors Intake Air Temp Sensor

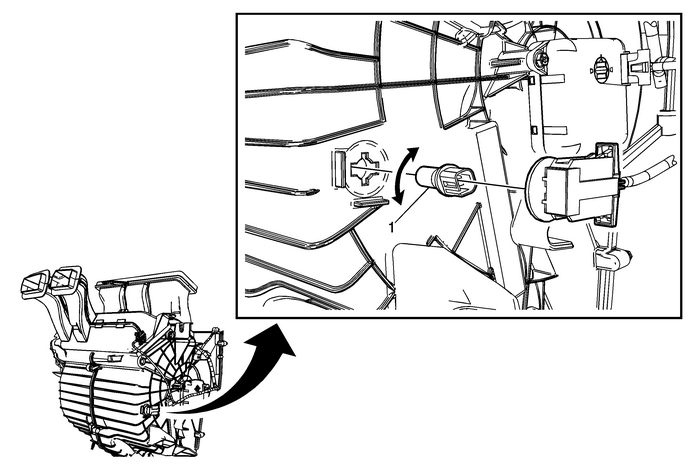

Duct Air Temperature Sensor Replacement - Lower

Callout

Component Name

Preliminary ProcedureRemove I/P Compartment door. Refer toInstrument Panel Compartment Door ReplacementDisconnect electrical connections.

1

Air Temperature Sensor– Lower

Tip:Rotate sensor¼ turn to remove
