Drive Belt Tensioner Replacement Pulleys and Belts Belt Tensioner

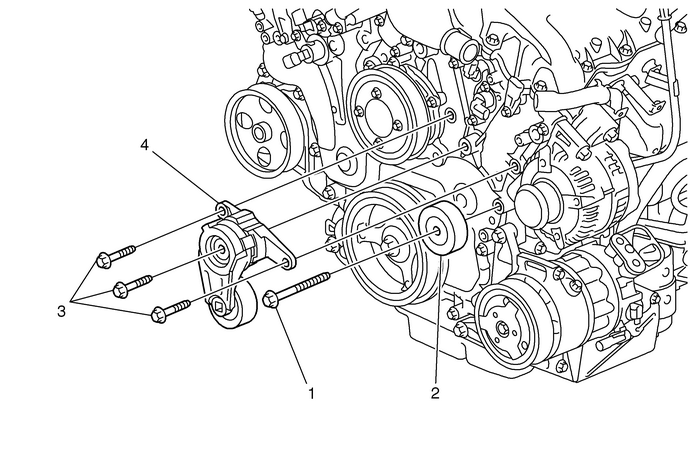

Drive Belt Tensioner Replacement

Callout

Component Name

Preliminary Procedure

Remove the drive belt. Refer toDrive Belt Replacement.

1

Drive Belt Idler Pulley Fastener

Caution:Refer toFastener Caution.

Tighten

58-Y (43-lb-ft)

2

Drive Belt Idler Pulley

3

Drive Belt Tensioner Fastener (Qty: 3)

Tighten

25-Y (18-lb-ft)

4

Drive Belt Tensioner
