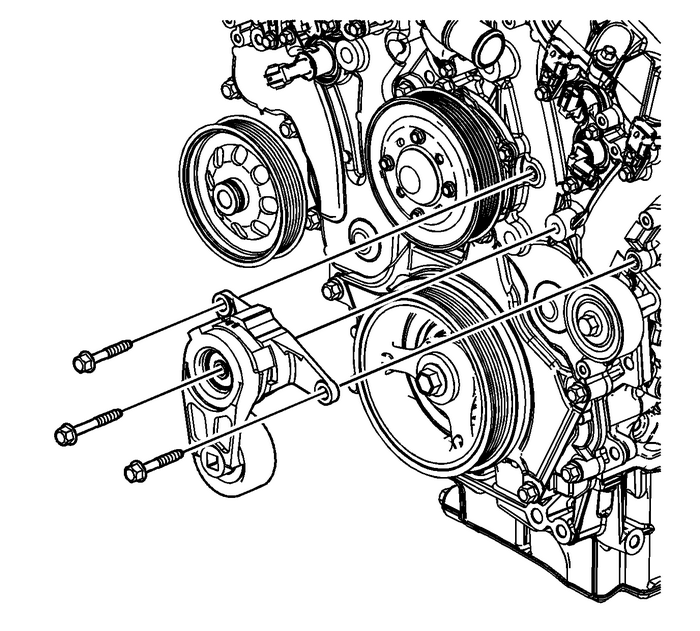

Drive Belt Tensioner Removal Pulleys and Belts Belt Tensioner

Remove the drive belt tensioner bracket bolts.Remove the drive belt tensioner assembly.
