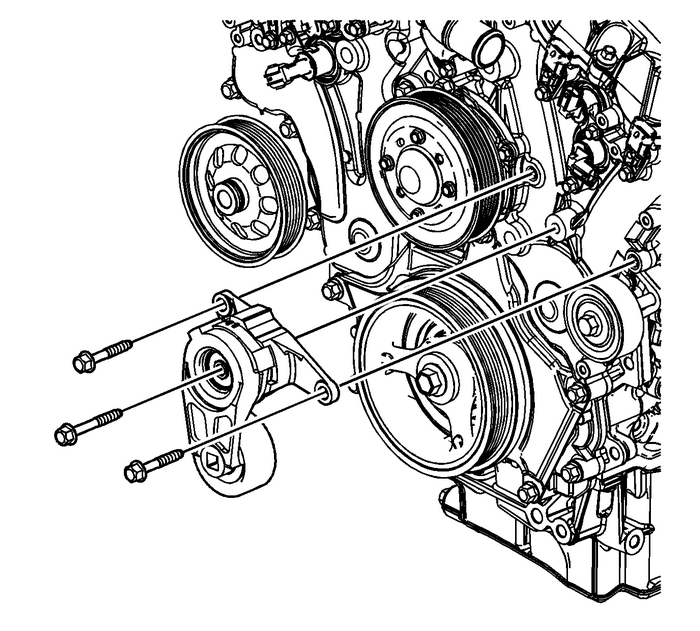

Place the left drive belt tensioner assembly in position tothe engine front cover.
Caution:Refer toFastener Caution.
Install the left drive belt tensioner bracket bolts andtighten to25-Y(18-lb-ft).Dimensions - Body
