Drive Belt Replacement Pulleys and Belts Accessory Drive Belts

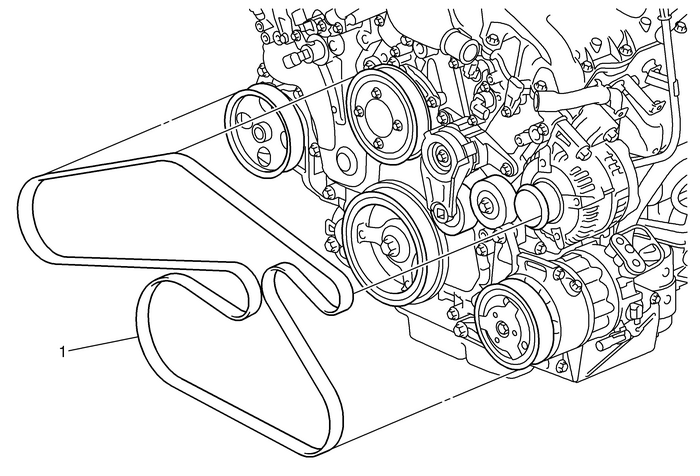

Drive Belt Replacement

Callout

Component Name

Preliminary Procedures

Remove the engine mount bracket. Refer toEngine Mount Bracket Replacement - Right Side

Drive Belt

ProcedureRotate the drive belt tensioner clockwise to release the drive belt tension.Slide the drive belt off of the belt idler pulley.Slowly release the drive belt tensioner.

Drive Belt Replacement Pulleys and Belts Accessory Drive Belts

Drive Belt ReplacementCalloutComponent NamePreliminary ProcedureRemove the right engine splash shield. Refer toEngine Splash Shield Replacement - Right Side.1Drive BeltProcedureUse the proper tool to ...

Drive Belt Tensioner Replacement Pulleys and Belts Belt Tensioner

Drive Belt Tensioner ReplacementCalloutComponent NamePreliminary ProcedureRemove the drive belt. Refer toDrive Belt Replacement.1Drive Belt Idler Pulley FastenerCaution:Refer toFastener Caution.Tighte ...
