Drive and Driven Sprocket, Drive Link, and Park Pawl Removal (6T40/45/50) Automatic Transmission Unit

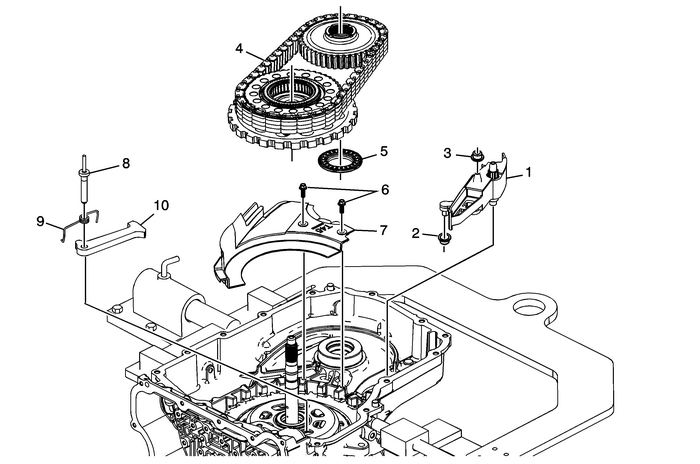

Drive and Driven Sprocket, Drive Link, and Park Pawl Removal

Callout

Component Name

1	Drive Link Lube Scoop
2	Drive Link Lube Scoop Seals
3	Drive Link Lube Fluid Seal
4	Driven Sprocket Assembly, Drive Sprocket and Park Gear Assembly and Drive Link ProcedureThe drive link, drive and driven sprocket assemblies must be removed at the same time.The driven sprocket ball bearing inner race has a slight interference fit with thecase. Pull straight up to ease removal.
5	Driven Sprocket Bearing Assembly Note:The driven sprocket bearing may be stuck to the driven sprocket.
6	Front Differential Carrier Baffle Bolts-M6-x-16 (Qty:-2)
7	Front Differential Carrier Baffle
8	Park Pawl Shaft
9	Park Pawl Spring
10	Park Pawl
