Chevrolet Equinox Owners Manual: Door Locks

To lock or unlock the vehicle from the outside, press or on the Remote Keyless Entry (RKE) transmitter.

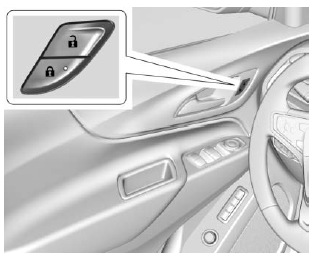

Door Locks

: Press to lock the doors. The indicator light in the switch will come on when the door is locked.

: Press to unlock the doors.

See Door Locks.

To manually unlock a door from inside the vehicle, pull once on the door handle to unlock it, and a second time to open it.

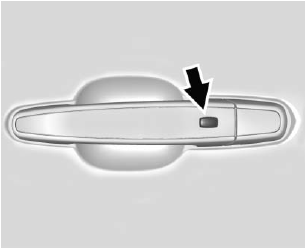

Keyless Access

Keyless Access

Press the button on the driver door handle when the RKE transmitter is within 1 m (3 ft) of the driver door handle. When unlocking from the driver door, the first press unlocks that door; press again within five seconds to unlock all passenger doors. See Remote Keyless Entry (RKE) System Operation.

Remote Vehicle Start
If equipped, the engine can be started from outside of the vehicle. Starting the Vehicle Press and release  on the RKE transmitter.  Immediately press and hold for at least ...

Liftgate
Manual Liftgate Operation Unlock the vehicle before opening the liftgate. To open the liftgate, press the touch pad under the liftgate handle and lift up. Do not press the touch pad while c ...
