Warning
Unlocked doors can be
dangerous.
|
To lock or unlock the doors from the outside:
See Remote Keyless Entry (RKE) System Operation.
The key lock cylinder is covered with a cap.

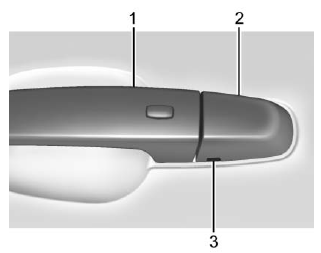

To lock or unlock the doors from the inside:
Keyless Access
If equipped, the RKE transmitter must be within 1 m (3 ft) of the liftgate or door being opened. Press the button on the door handle to open. See "Keyless Access Operation" in Remote Keyless Entry (RKE) System Operation.
Key Cylinder Access

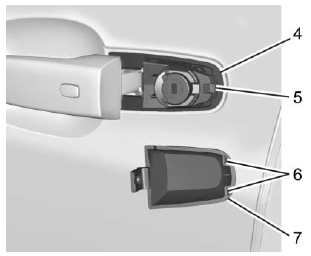

To access the key cylinder:

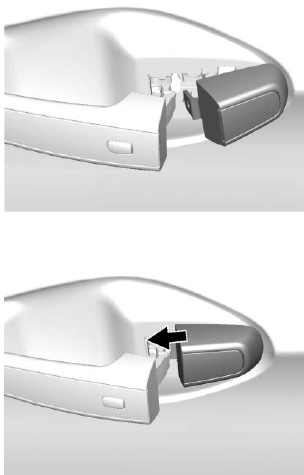

To replace the cap:
Free-Turning Locks
The door lock cylinder turns freely when either the wrong key is used, or the correct key is not fully inserted. The free-turning door lock feature prevents the lock from being forced open.
To reset the lock, turn it to the vertical position with the correct key fully inserted. Remove the key and insert it again.
If this does not reset the lock, turn the key halfway around in the cylinder and repeat the reset procedure.
