Dome and Reading Lamp Switch Replacement Lighting Interior Lighting Rear Reading Lamps

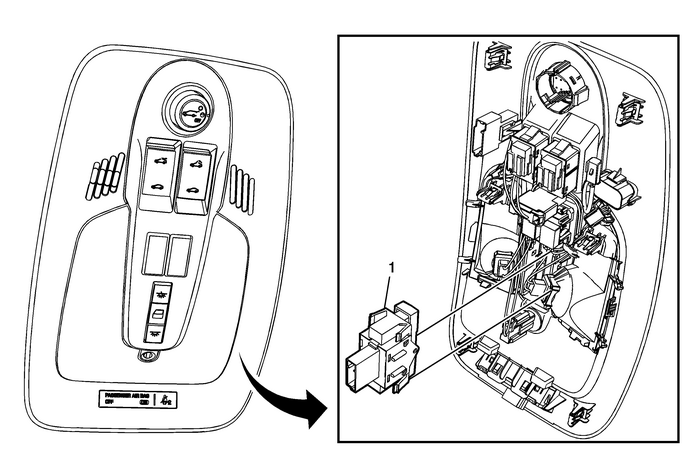

Dome and Reading Lamp Switch Replacement

Callout

Component Name

Preliminary Procedure

Remove the roof console. Refer toRoof Console Replacement.

1

Dome and Reading Lamp Switch

Procedure

Press tabs together and remove switch.
