Chevrolet Equinox Service Manual: Direct Fuel Injector Replacement Fuel System Injectors

Chevrolet Equinox Service Manual / Powertrain / Engine / Direct Fuel Injector Replacement Fuel System Injectors

Removal ProcedureRelieve the high side fuel system pressure. Refer toFuel Pressure Relief.

Note:The fuel injectors have an alignment feature, note theposition of the injectors alignment for installation.

Remove the fuel injection fuel rail assembly. Refer toFuel Injector and Fuel Rail Replacement.

Direct Fuel Injector Replacement Fuel System Injectors

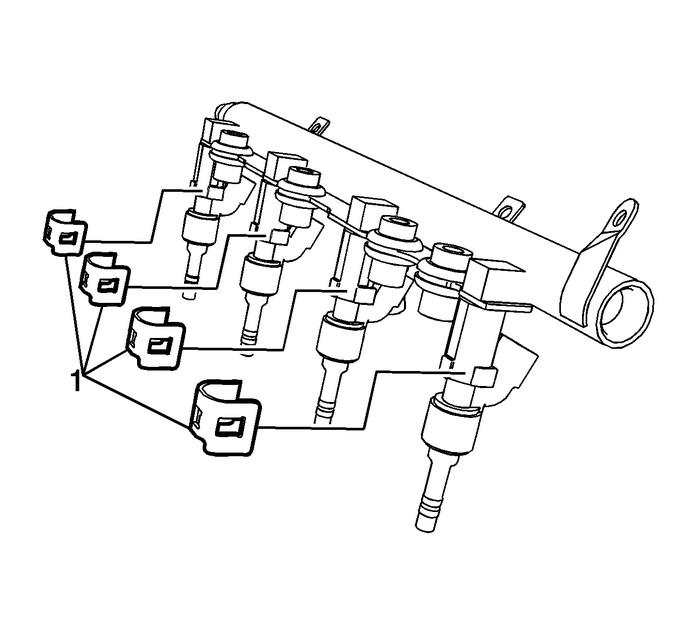

Remove and discard the fuel injectorretainers-(1).Clean and inspect the fuel rail and injectors. Refer toFuel Rail and Injectors Cleaning and Inspection.Installation Procedure

Direct Fuel Injector Replacement Fuel System Injectors

Install NEW fuel injector retainers-(1).

Note:The fuel injectors have an alignment feature and must bereinstalled as noted during removal.

Install the fuel injection fuel rail assembly. Refer toFuel Injector and Fuel Rail Replacement.
Intake Manifold Replacement Intake and Forced Induction Intake Manifold
Removal ProcedureRecover the A/C system. Refer toRefrigerant Recovery and Recharging.Relieve the fuel system pressure. Refer toFuel Pressure Relief.Remove the air cleaner outlet duct. Refer toAir Clea ...

Valve Rocker Arm Replacement - Left Side Valvetrain Valve Actuating Assembly Rocker Arms
Removal ProcedureRemove the applicable camshaft(s). Refer toCamshaft Replacement - Left Side.Remove the rocker arms.Clean and inspect the camshaft(s) and the rocker arm(s). Replace as necessary. Refer ...

Other materials:

Fuel Rail and Injectors Cleaning and Inspection (LAF, LEA, or LUK) Fuel System Fuel Rail
Special ToolsEN-49245Fuel Injector Seal Installer and SizerEN-49247Injector Retaining Clip InstallerFor equivalent regional tools, refer toSpecial Tools.Disconnect the electrical connections from the fuelinjectors-(1).Note:Support the fuel rail along the bottom, indicated by thearrow. Support the fu ...
