Dimmer Switch Replacement Lighting Interior Lighting

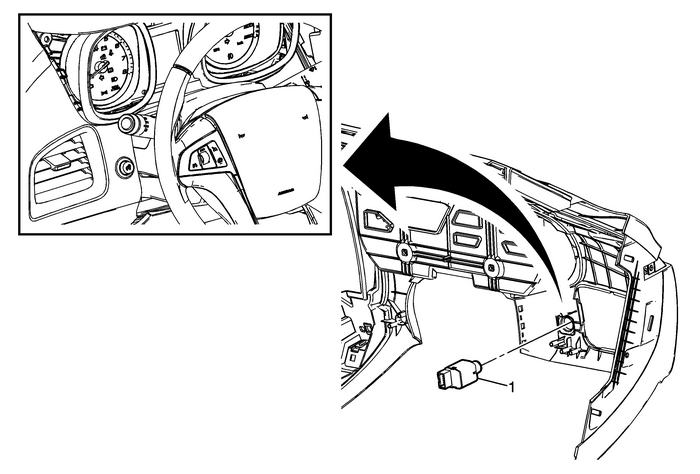

Dimmer Switch Replacement

Callout

Component Name

Preliminary ProcedureRemove the instrument panel insulator, left side. Refer toInstrument Panel Insulator Panel Replacement - Left SideRemove the driver knee bolster panel. Refer toDriver Knee Bolster Panel ReplacementRemove the driver knee bolster reinforcement. Refer toDriver Knee Bolster Reinforcement Replacement

1

Instrument Panel Lamp Dimmer Switch

ProcedureDisconnect the electrical connector.From underneath, carefully insert a long appropriate toolinto the switch bracket from the inner side of the instrument paneland release the tabs fastening the dimmer switch to the dimmerswitch bracket. At the same time, push forward on the switch from asurface side to separate it from the tabs. Use care not to damagethe bracket while releasing the fastening tabs.
