Digital Video Antenna Cable Replacement Entertainment

Digital Video Antenna Cable Replacement

Callout

Component Name

Preliminary ProceduresRemove the radio. Refer toRadio Replacement.Remove the driver side knee bolster reinforcement. Refer toDriver Knee Bolster Reinforcement Replacement.Remove the instrument panel compartment door. Refer toInstrument Panel Compartment Door ReplacementRemove the windshield side garnish molding. Refer toWindshield Side Garnish Molding Replacement

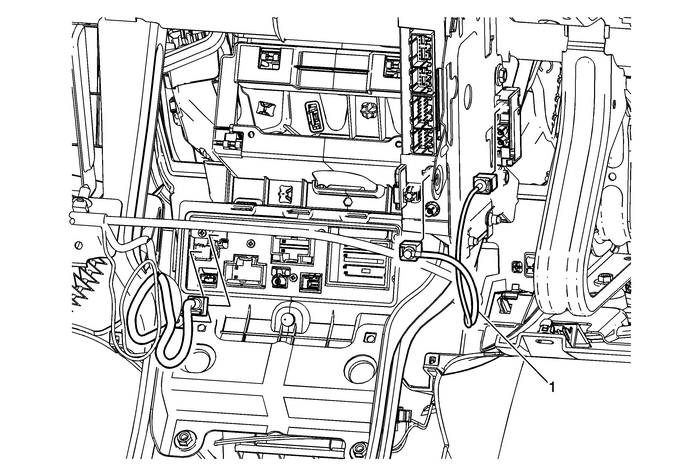

1

Digital Video Antenna Cable

ProcedureDisconnect all of the electrical connectors. Cable connectsto the radio, communication interface module, and the navigationsignal splitter.Note the cable routing prior to removal for installationpurposes.
