Differential Housing Support Bushing Replacement (Front) Differentials Differential Carrier

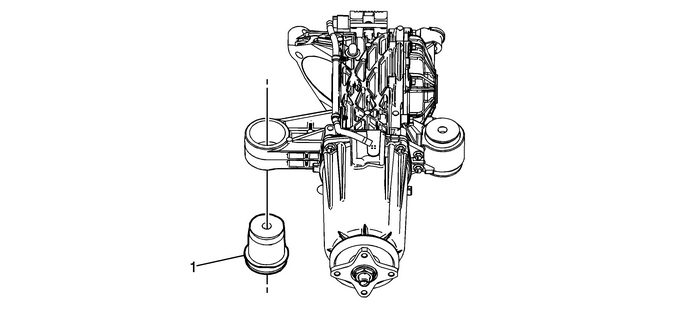

Differential Housing Support Bushing Replacement

Callout

Component Name

Preliminary Procedure

Remove the Rear Differential Module. Refer toDifferential Replacement.

1

Rear Differential Mount Bushing

Tip:Use the appropriate tool to remove the bushing.
