Differential Carrier Assembly Mount Replacement Differentials Differential Carrier

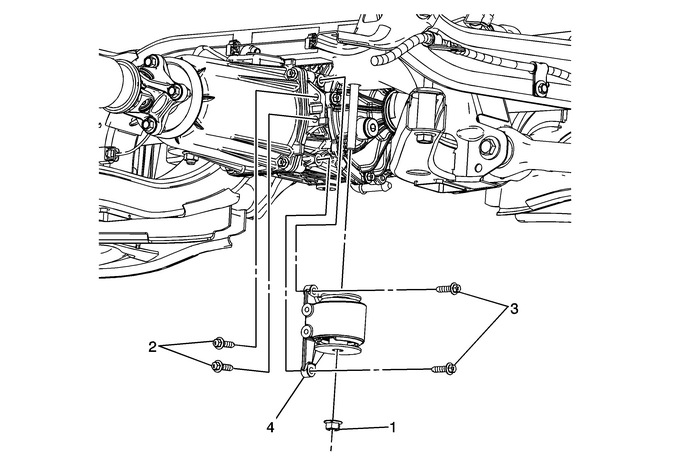

Differential Carrier Assembly Mount Replacement

Callout

Component Name

Preliminary Procedure Raise the vehicle. Refer toLifting and Jacking the Vehicle.
1	Left Rear Differential Mount Nut Caution:Refer toFastener Caution. Tip:Support the rear differential with a jack stand. Tighten 122-Y(90-lb-ft)
2	Left Rear Differential Mount Bolt (Qty:-2) Tighten 29-Y(21-lb-ft)
3	Left Rear Differential Mount Bolt (Qty:-2) Tighten 29-Y(21-lb-ft)
4	Left Rear Differential Mount
