Cylinder Head Removal - Left Side Engine Block Cylinder Head

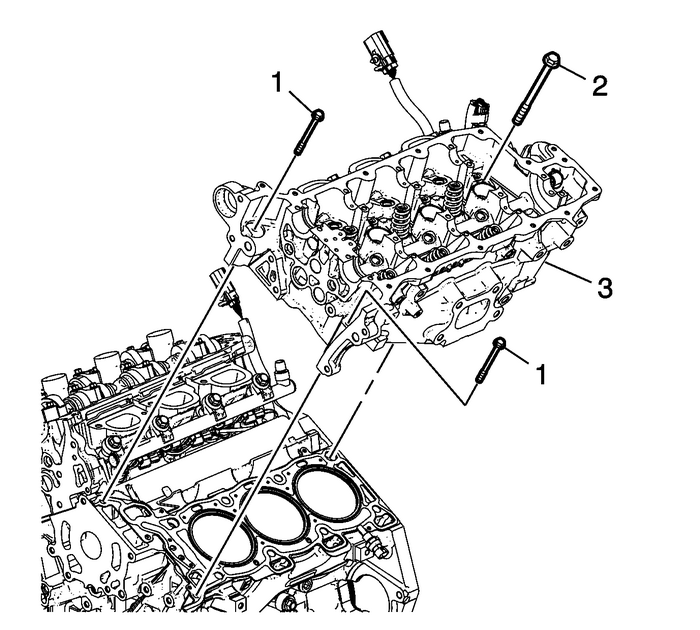

Remove the two-front M8 left cylinder head bolts-(1) and discard.Remove the left cylinder head bolts-(2) and discard.Remove the left cylinder head-(3).

Cylinder Head Removal - Left Side Engine Block Cylinder Head

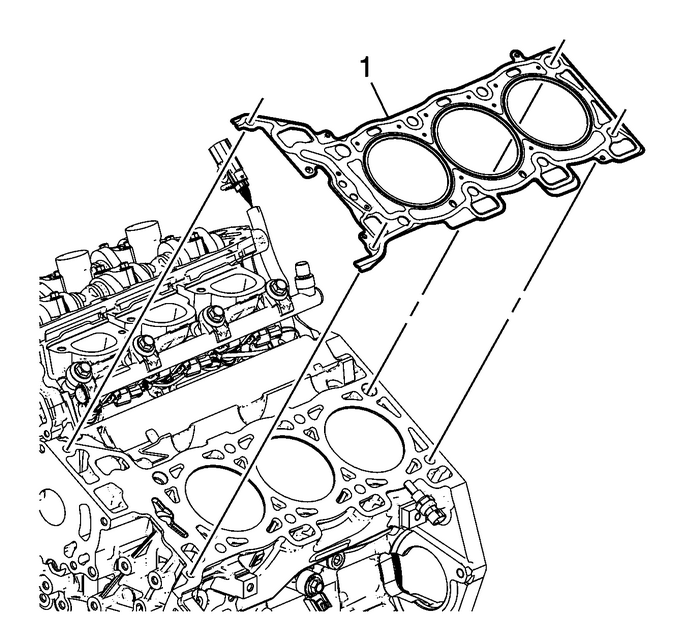

Remove and discard the left cylinder head gasket-(1).
