Special Tools
EN 45059 Angle Meter
For equivalent regional tools, refer toSpecial Tools.
Ensure the cylinder head locating pins are securely mounted in the cylinder blockdeck face.Install a NEW left cylinder head gasket-(1) using the deck face locating pins forretention.

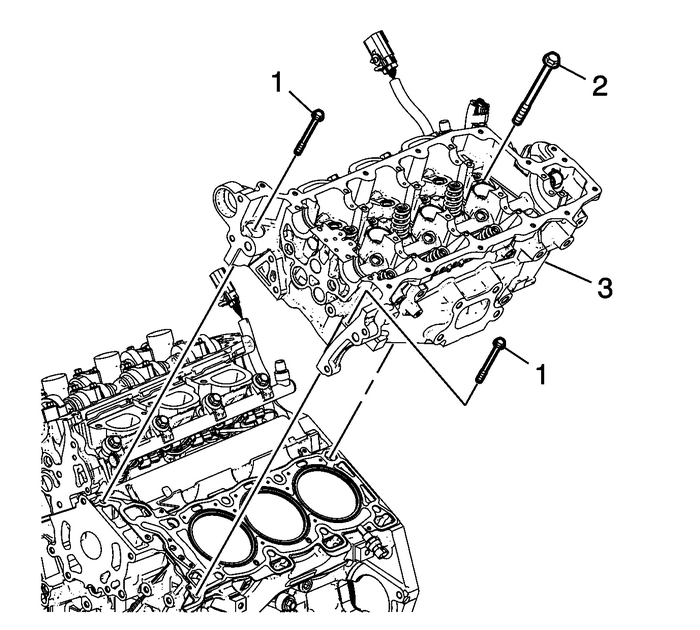

Align the left cylinder head-(3) with the deck face locating pins.Place the left cylinder head in position on the deck face.
Caution:Refer toFastener Caution.
Caution:This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEWtorque-to-yield or single use fastener when installing this component. Failure toreplace the torque-to-yield or single use fastener could cause damage to the vehicleor component.
Note:DO NOT allow oil on the cylinder head bolt bosses.

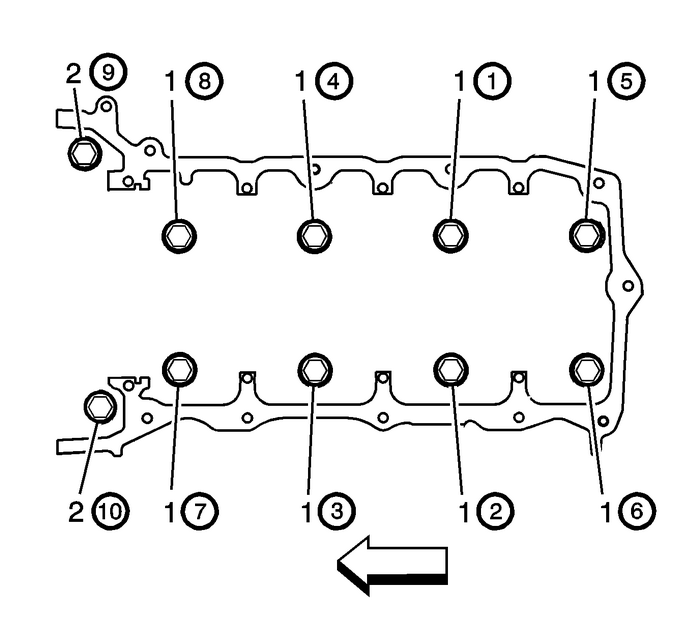

Install the NEW M11 cylinder head bolts-(1).Tighten the M11 cylinder head bolts a first pass in sequence to 30-Y (22-lb-ft).Tighten the M11 cylinder head bolts a second pass in sequence an additional 150-degrees using the EN 45059 meter.Install the 2-NEW front M8 left cylinder head bolts-(2).Tighten the M8 cylinder head bolts a first pass to 15-Y (11-lb-ft).Tighten the M8 cylinder head bolts a second pass in sequence an additional 75-degrees using the EN 45059 meter.Throttle Body Assembly Replacement Engine Control Air Metering/Acceleration Throttle
