Chevrolet Equinox Service Manual: Crankshaft Rear Oil Seal Installation Engine Block Seals and Gaskets

Chevrolet Equinox Service Manual / Powertrain / Engine / Crankshaft Rear Oil Seal Installation Engine Block Seals and Gaskets

Special Tools

EN-42067Rear Main Seal Installer

For equivalent regional tools, refer toSpecial Tools.

Crankshaft Rear Oil Seal Installation Engine Block Seals and Gaskets

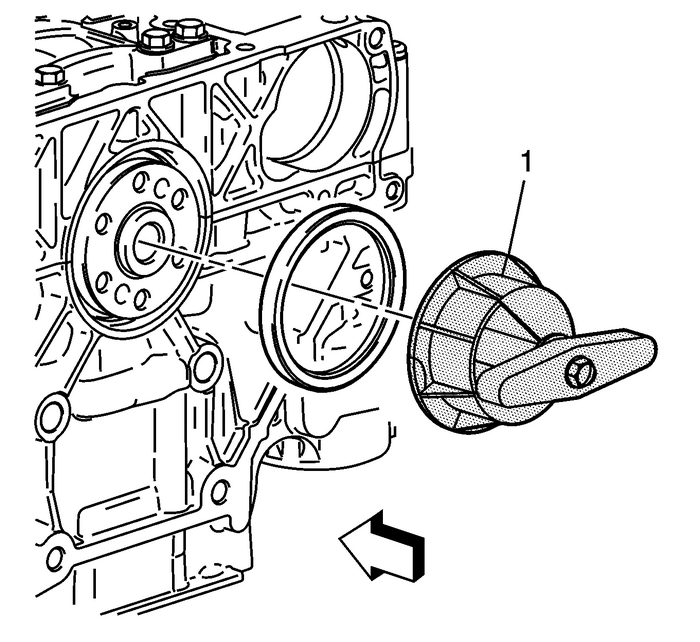

Remove excess sealer from seal recess.Lubricate the outside diameter of the new crankshaft sealwith clean engine oil.Using theEN-42067installer-(1), press the new crankshaft seal into thehousing. TheEN-42067installeralso establishes the depth of the seal in the crankshaftseal bore.
