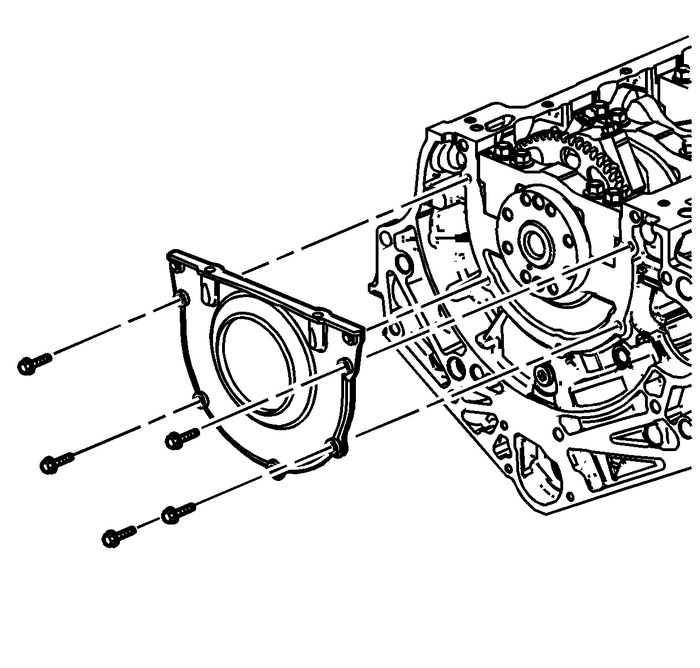

Chevrolet Equinox Service Manual: Crankshaft Rear Oil Seal and Housing Replacement Engine Block Seals and Gaskets
Removal ProcedureRemove the automatic transmission flex plate. Refer toAutomatic Transmission Flex Plate Replacement.Remove the oil pan. Refer toOil Pan Replacement.
Remove the crankshaft rear oil seal and housing. Refer toCrankshaft Rear Oil Seal and Housing Removal.Installation Procedure
Install the crankshaft rear oil seal and housing. Refer toCrankshaft Rear Oil Seal and Housing Installation.Install the oil pan. Refer toOil Pan Replacement.Install the automatic transmission flex plate. Refer toAutomatic Transmission Flex Plate Replacement.
Valve Lifter Replacement - Left Side
Removal ProcedureRemove the applicable camshafts. Refer toCamshaft Replacement - Left Side.Remove the rocker arms. Refer toValve Rocker Arm Replacement - Left Side.Remove the lifters. Refer toValve Li ...
Camshaft Replacement - Right Side Valvetrain Camshaft
Removal ProcedureRemove the camshaft position actuators. Refer toCamshaft Position Actuator Replacement - Bank 1.Observe the markings on the bearing caps-(1). Each bearing cap is marked in orderto ide ...
