Crankshaft Rear Oil Seal and Housing Removal Engine Block Seals and Gaskets

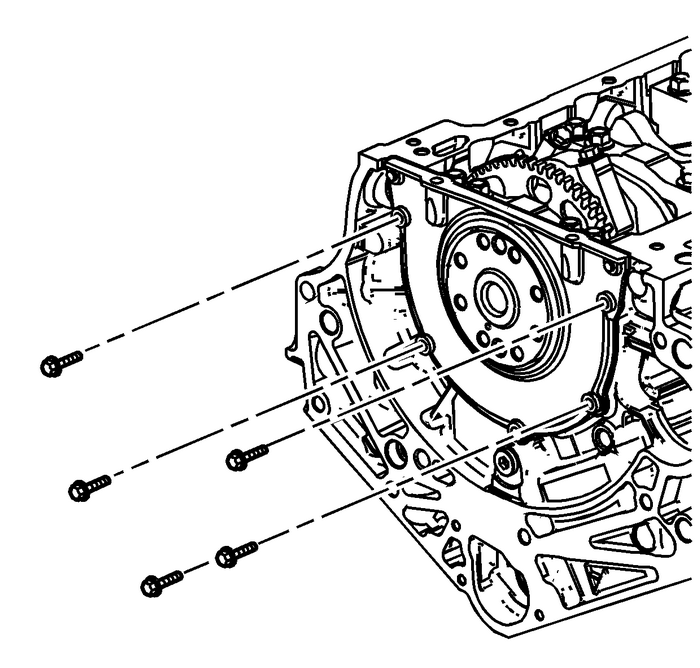

Remove the crankshaft rear oil seal housing bolts.

Crankshaft Rear Oil Seal and Housing Removal Engine Block Seals and Gaskets

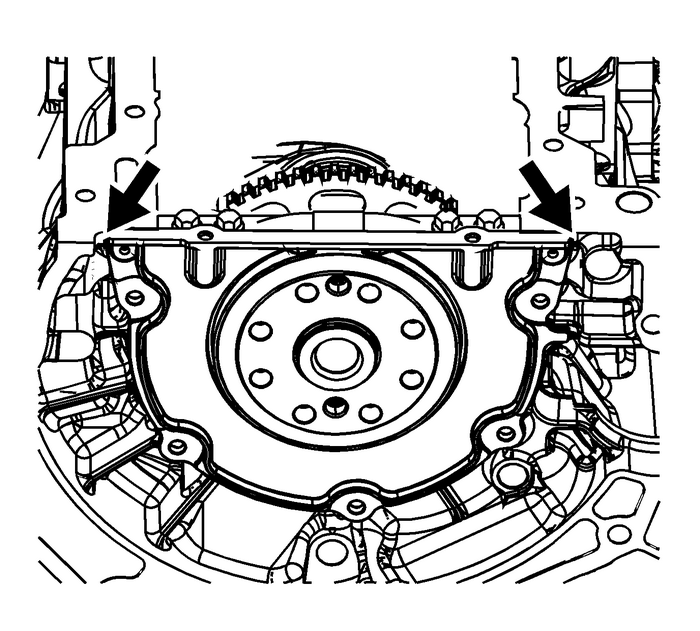

Use the pry points located at the edge of the crankshaft rearoil seal housing to separate the RTV sealant.

Crankshaft Rear Oil Seal and Housing Removal Engine Block Seals and Gaskets

Remove and discard the crankshaft rear oil sealhousing.
