Chevrolet Equinox Service Manual: Crankshaft Rear Oil Seal and Housing Installation Engine Block Seals and Gaskets
Special ToolsEN-42183HandleEN-46109Guide Pin SetEN-47839Crankshaft Rear Oil Seal InstallationTool
For equivalent regional tools, refer toSpecial Tools.

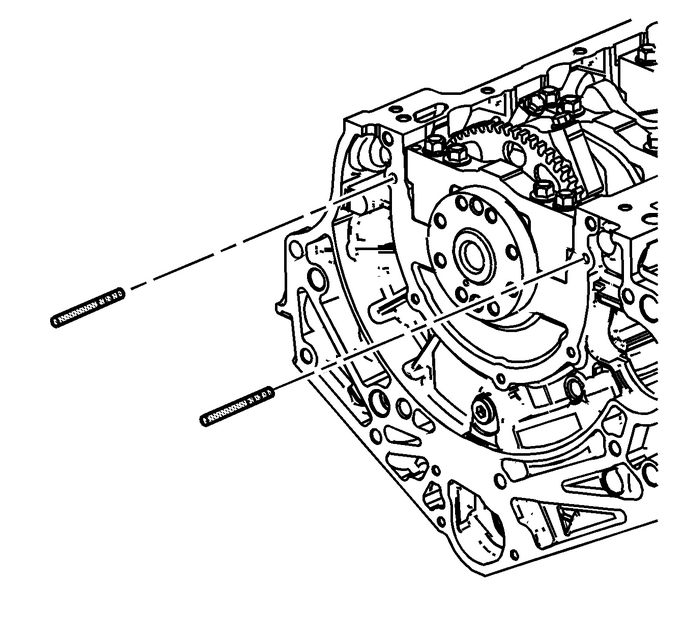

Install the 6-mm (0.236-in) guides fromtheEN-46109pin setinto the 2-crankshaft rear oil seal housingcorner bolt holes of the engine block.

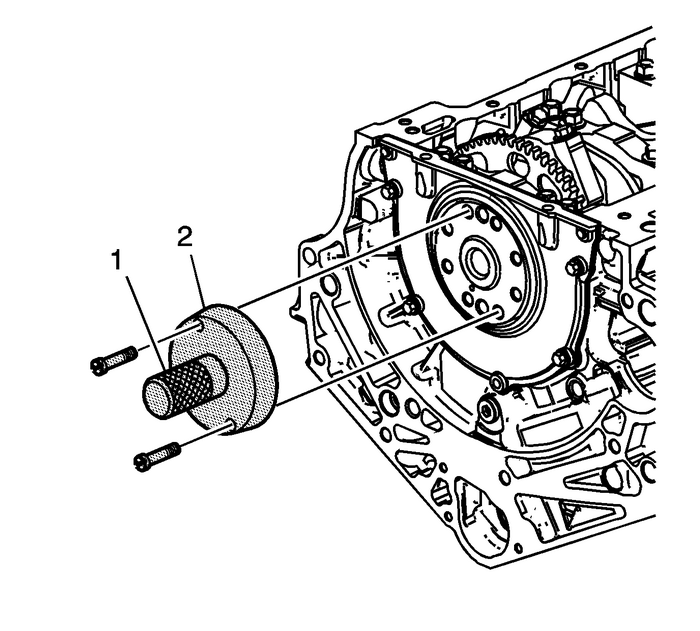

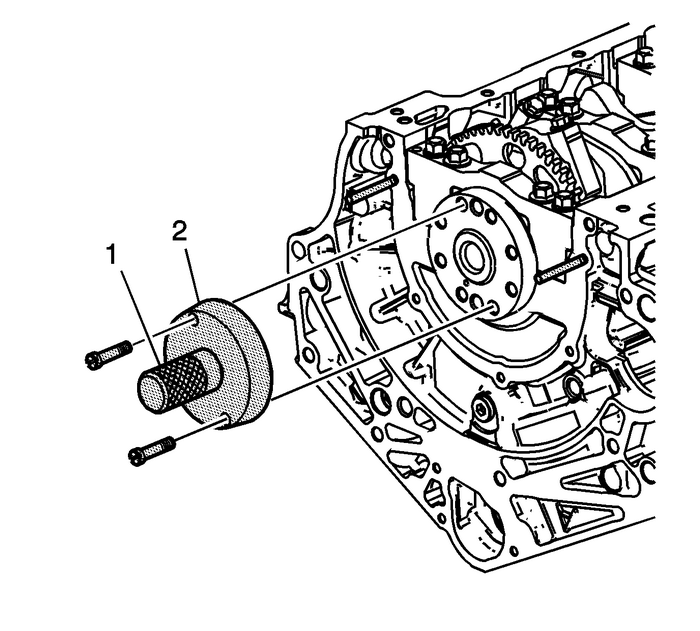

Install theEN-47839toolwith theEN-42183handle-(1, 2) onto the rear of the crankshaftflange.

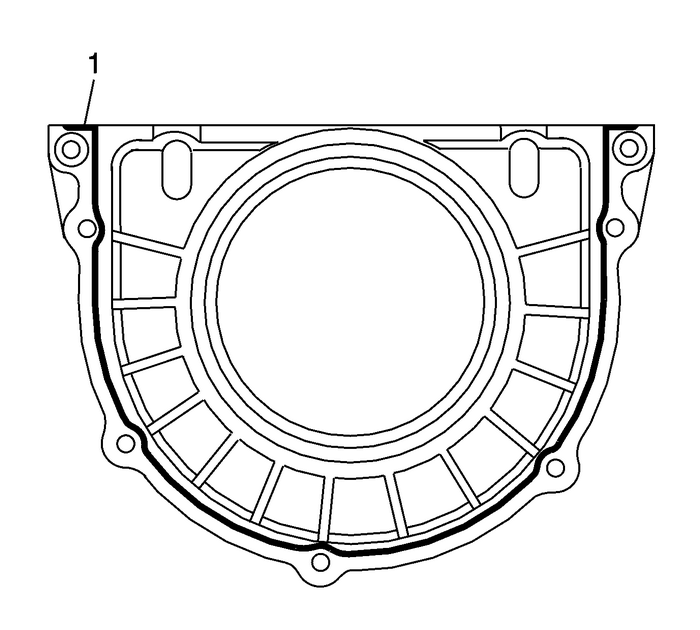

Place a 3-mm (0.118-in) bead of RTVsealant to the NEW crankshaft rear oil seal housing asshown-(1). Refer toAdhesives, Fluids, Lubricants, and Sealersfor recommendedsealant.
Note:DO NOT allow any engine oil on the area where the crankshaftrear oil seal housing is to be installed.

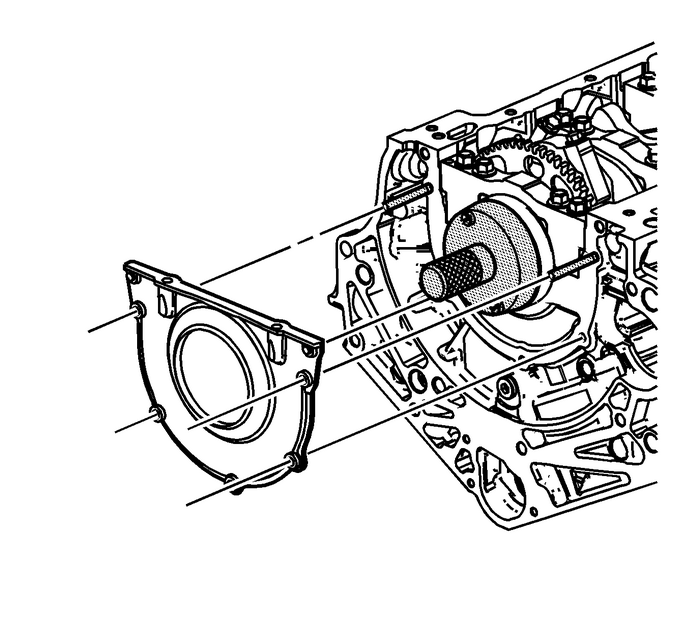

Install the crankshaft rear oil seal housing to the engineblock.

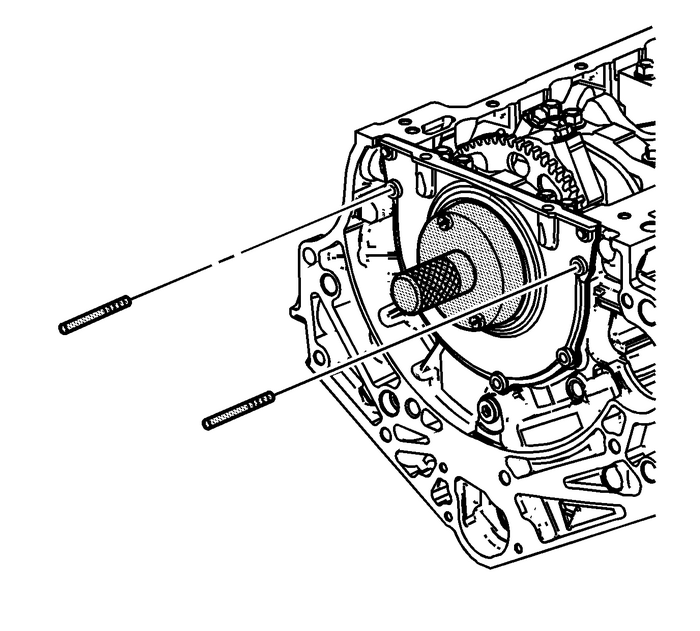

Remove theEN-46109pin set6-mm (0.236-in) guides from theengine block.

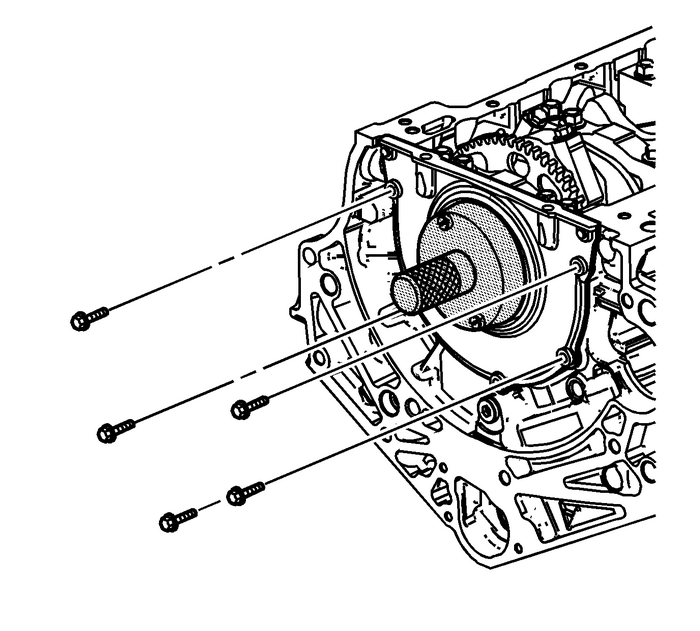

Install the crankshaft rear oil seal housing bolts.
Caution:Refer toFastener Caution.

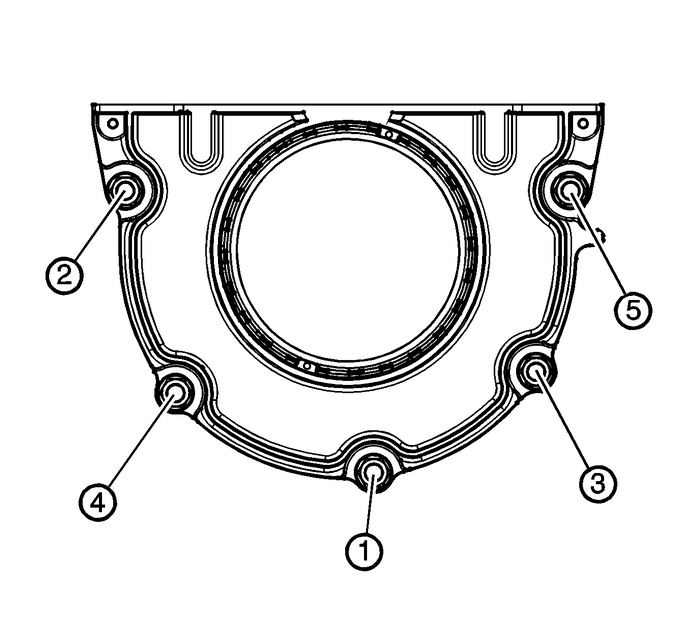

Tighten the crankshaft rear oil seal housing bolts insequence and tighten to10-Y(89-lb-in).
Remove theEN-47839toolandEN-42183handle-(1, 2) from the crankshaft flange.
Crankshaft Rear Oil Seal Installation Engine Block Seals and Gaskets
Special ToolsEN-42067Rear Main Seal InstallerFor equivalent regional tools, refer toSpecial Tools.Remove excess sealer from seal recess.Lubricate the outside diameter of the new crankshaft sealwith cl ...
Thread Repair
Special ToolsEN 42385–850Thread Repair KitFor equivalent regional tools, refer toSpecial Tools.General Thread RepairThe thread repair process involves a solid, thin walled,self-locking, carbon steel ...
