Chevrolet Equinox Service Manual: Crankshaft Front Oil Seal Replacement Engine Block Seals and Gaskets
Special Tools
EN-35268-ACamshaft/Front Main Seal Installer
For equivalent regional tools, refer toSpecial Tools.
Removal Procedure

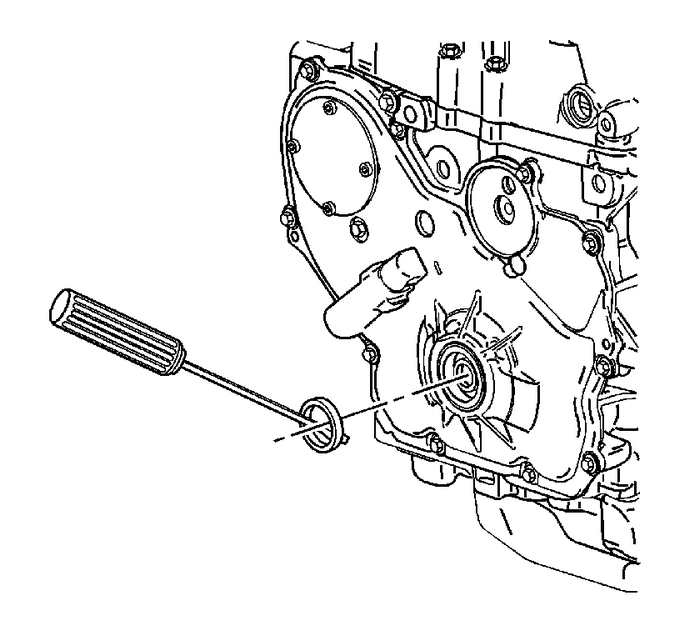

Remove the crankshaft balancer. Refer toCrankshaft Balancer Replacement.Use a flat-bladed tool to remove the seal from thefront cover.Installation Procedure

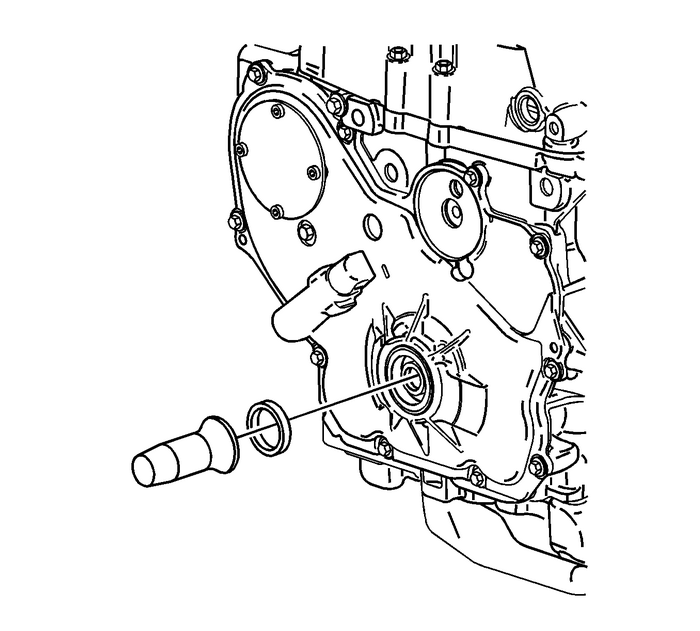

Use theEN-35268-Ainstallerin order to install the crankshaft front oil seal to theengine front cover.Install the crankshaft balancer. Refer toCrankshaft Balancer Replacement.
