Chevrolet Equinox Service Manual: Crankshaft Balancer Removal Engine Block Cylinder Block Crankshaft

Chevrolet Equinox Service Manual / Powertrain / Engine / Crankshaft Balancer Removal Engine Block Cylinder Block Crankshaft

Special Tools

EN 43653Flywheel Holding Tool

For equivalent regional tools, refer toSpecial Tools

Crankshaft Balancer Removal Engine Block Cylinder Block Crankshaft

/_iv,:

InstallEN 43653holding tool-(1) in the starter assembly location, engagingthe flywheel, in order to prevent crankshaft rotation.

Crankshaft Balancer Removal Engine Block Cylinder Block Crankshaft

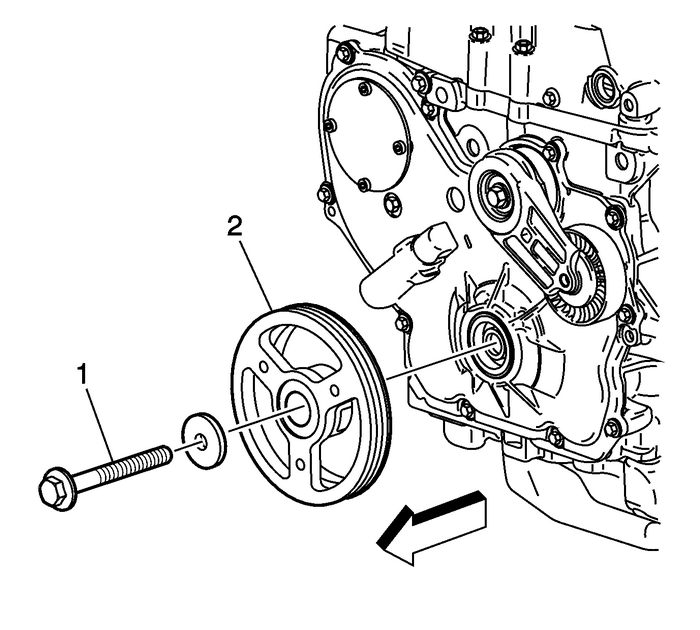

Remove the balancer retaining bolt-(1) and washer.Discard the bolt.Remove the balancer-(2) using a universal removaltool.
