Courtesy Lamp Bulb Replacement Lighting Interior Lighting Courtesy Entry Illumination

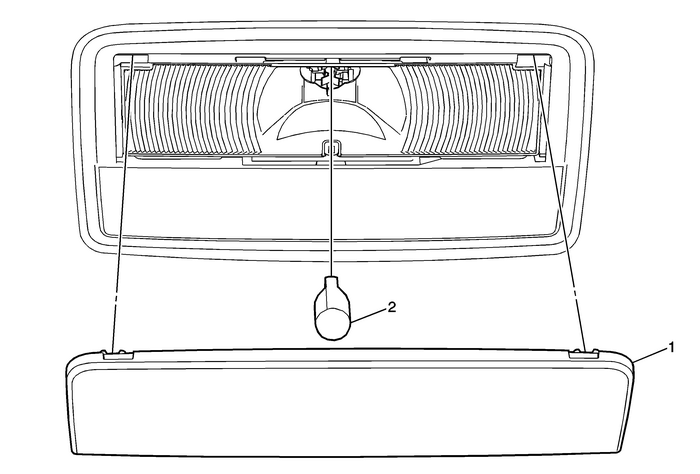

Courtesy Lamp Bulb Replacement

Callout

Component Name

1

Courtesy Lamp Lens

Procedure

Using a nylon flat bladed tool release the lens to gainaccess to the bulb.

2

Courtesy Lamp Bulb
